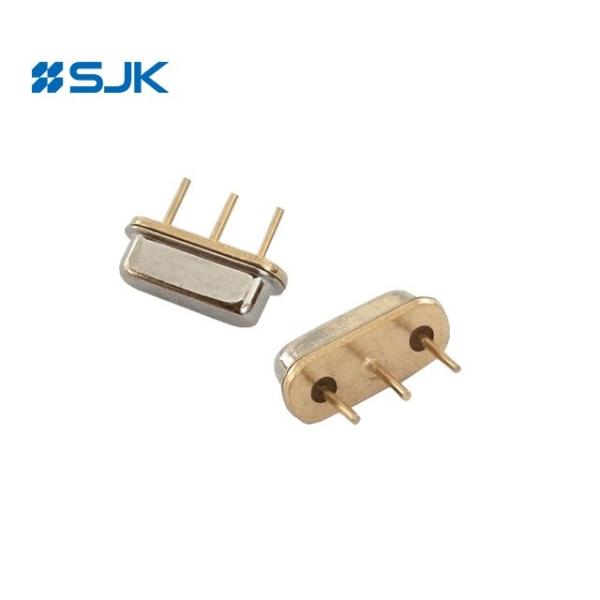

D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
Specifications
Brand Name :
SJK
Model Number :
D-11 433.92MHz
Certification :
SGS,ROHS,REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T,
Supply Ability :
30Kpcs per Month
Delivery Time :
6-8weeks
Packaging Details :
1000pcs
Model :
D-11 SAW Resonator
Frequency Tolerance :
+/- 50ppm
Insertion Loss :
2.1dB Max.
Size :
8.36u00d73.45u00d71.7mm
Number Of Pins :
3
Package Type :
DIP
Drive Level :
100mW
Aging :
+/- 5ppm per year
Shunt Capacitance :
5pF
Operating Temperature Range :
-20°C to +70°C
Frequency Stability :
+/- 50ppm
Load Capacitance :
30pF
Storage Temperature Range :
-40°C to +85°C
Description
D-11 DIP Saw Resonator 3 Pin with Electrostatic Sensitive Device for Remote Control

Features

1-Port SAW Resonator

Metal Case D-11

Electrostatic Sensitive Device (ESD)

Package Size with 8.3*3.45*1.7mm

Application: Remote Control, Security, Alarm, etc.

RoHS Compliant & Pb Free

Specifications

P/N Center Frequency (MHz) Frequency Tolerance (kHz) Insertion Loss (dB) Package Type
R303.825 303.825 ±30 /±75 1.5 D-11
R303.875 303.875 ±30 /±75 1.5 D-11
R315 315.000 ±30 /±75 1.3 D-11
R316.8 316.800 ±30 /±75 1.3 D-11
R330 330.000 ±30 /±75 1.5 D-11
R350 350.000 ±30 /±75 1.5 D-11
R360 360.000 ±30 /±75 1.4 D-11
R370 370.000 ±30 /±75 1.5 D-11
R390 390.000 ±30 /±75 1.4 D-11
R418 418.000 ±30 /±75 1.5 D-11
R433 433.920 ±30 /±75 1.5 D-11
R868.35 868.350 ±75 /±150 2.1 D-11

For other frequencies and specifications, please contact our sales department.

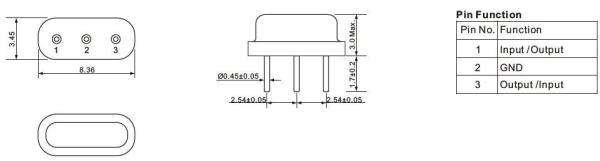

Dimensions [mm]

D-11 DIP Saw Resonator 3 Pin With Electrostatic Sensitive Device For Remote Control
