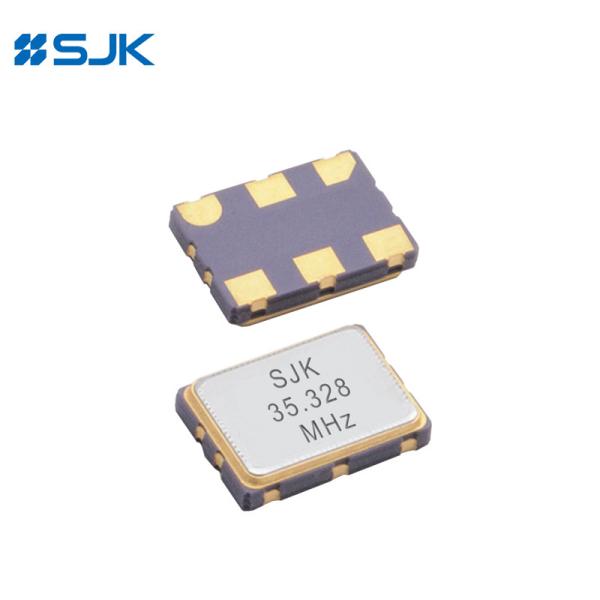

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85
SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85
SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85
SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85
Specifications
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
6V Series (SMD 7050 LVDS VCXO)
Frequency range :
50~700MHz
Output type :
LVDS
Supply voltage :
3.3V
Size :
7.0*5.0*1.3mm
Applications :
PC, Base station, Ethernet, SONET, Sever
Description

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

Features of 6V Series SMD 7050 LVDS VCXO

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm hign, SMD 7050 LVPECL VCXO

LVDS output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 6V Series SMD 7050 LVDS VCXO

Item /Type 6V Series (SMD 7050 LVDS VCXO)
Output Type LVDS
Output Load 100Ω
Supply Voltage 3.3V
Frequency Range 50~700MHz
Supply Current 99mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) 0.9V /1.6V
Rise (Tr) /Fall (Tf) Time 1ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Lineartiy 10% Max.
Phase Jitter (12KHz~20MHz) 10pS Max.
Packing Unit 1000pcs./Reel

Dimensions[mm]

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85+86-755-88352869

SMD 7050 LVDS VCXO 50~700MHz High Frequency ±25ppm -40~+85rita@q-crystal.com
