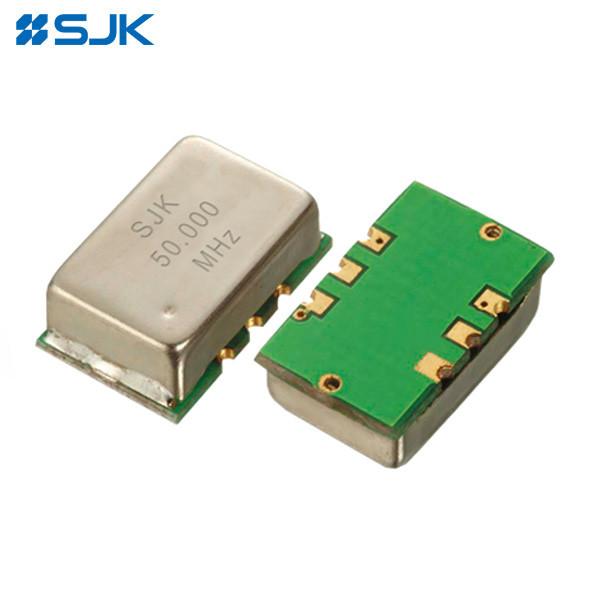

SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC
SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC
SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC
SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC
Specifications
Brand Name :
SJK
Model Number :
SJK-9S
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
9S Series (SMD VCXO)
Frequency range :
50~700MHz
Output type :
CMOS
Supply voltage :
3.3V
Size :
14.2×9.3×5.4mm
Applications :
PC, Base station, Ethernet, SONET, Sever, etc
Description

SMD VCXO CMOS Output 14.2×9.3×5.4mm With 3.3V ±25ppm -40~+85 For PC

Features of 9S Series SMD VCXO

Voltage Controlled Crystal Oscillator (VCXO)

Typical 14.2×9.3×5.4mm size. SMD VCXO

CMOS output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 9S Series SMD VCXO

Item /Type 9S Series (SMD VCXO)
Output Type CMOS
Output Load 15pF, or specify
Supply Voltage 3.3V
Frequency Range 50~700MHz
Supply Current 100mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) 0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time 5ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Lineartiy 10% Max.
Phase Jitter (12KHz~20MHz) 10pS Max.
Packing Unit 500pcs./Reel

Dimensions[mm]
