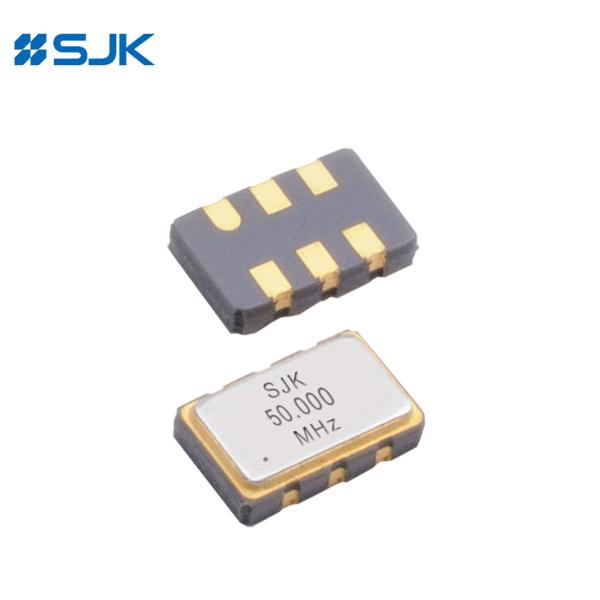

LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃
LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃
LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃
LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃
Specifications
Brand Name :
SJK
Model Number :
SJK-5P
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
5P Series (LVPECL Output SMD 5032 VCXO)
Frequency range :
50~200MHz
Output type :
LVPECL
Supply voltage :
3.3V
Size :
5.0*3.2*1.2mm
Applications :
PC, Server, Smart Grid, Ethernet, SONET, Femtocell, etc
Description

LVPECL Output SMD 5032 VCXO Support 50~200MHz 3.3V ±50ppm -40~+85℃

Features of 5P Series LVPECL SMD 5032 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

5032 size, 1.2mm hign, SMD 5032 VCXO

LVPECL output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 5P Series LVPECL SMD 5032 VCXO

Item /Type 5P Series (LVPECL Output SMD 5032 VCXO)
Output Type LVPECL
Output Load 50Ω to Vcc-2V
Supply Voltage 3.3V
Frequency Range 50~200MHz
Supply Current 80mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) Vcc- 1. 62V/Vcc- 1. 025V
Rise (Tr) /Fall (Tf) Time 1ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Lineartiy 10% Max.
Phase Jitter (12KHz~20MHz) 1pS Max.
Packing Unit 1000pcs./Reel

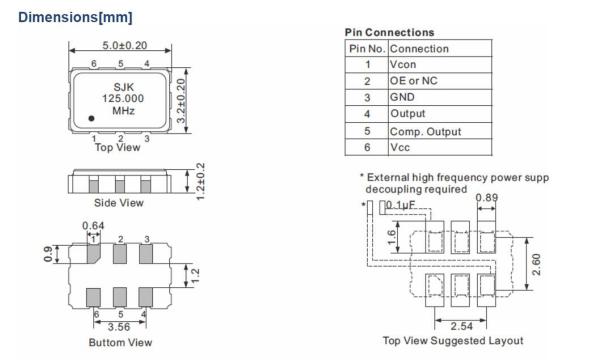

Dimensions[mm]
