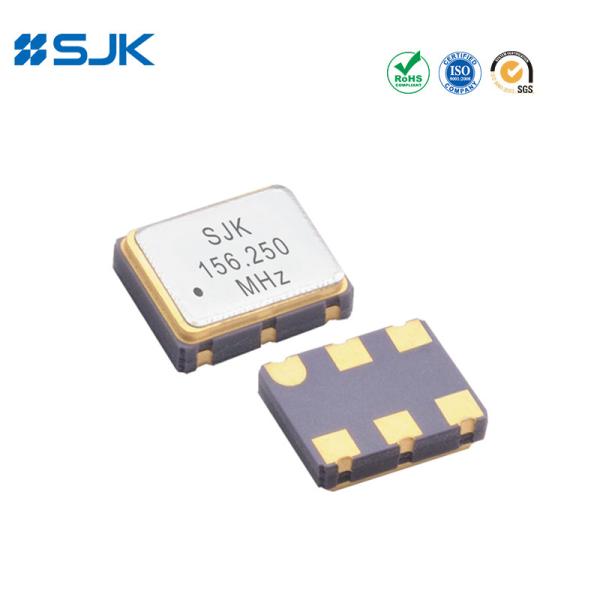

SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃
SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃
SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃
SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃
Specifications
Brand Name :
SJK
Model Number :
SJK-3P
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
3000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
3Kpcs/Reel
Model :
3P Series (LVPECL Output SMD 3225 VCXO)
Frequency range :
50~200MHz
Output type :
LVPECL
Supply voltage :
3.3V
Size :
3.2u00d72.5u00d70.95mm
Applications :
PC, FPGA, DSP, Smart grid, SATA, SAS, etc
Description

SMD 3225 VCXO LVPECL Output 50.000MHz 3.3V ±50ppm -40~+85℃

Features of 3P Series LVPECL Output SMD 3225 VCXO

Voltage Controlled Crystal Oscillator (VCXO)

3225 size, 0.95mm hign SMD VCXO

LVPECL output, output frequency range from 50MHz to 200MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, PC, FPGA, DSP, Smart grid, SATA, SAS, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 3P Series LVPECL Output SMD 3225 VCXO

Item /Type 3P Series (LVPECL Output SMD 3225 VCXO)
Output Type LVPECL
Output Load 50Ω to Vcc-2V
Supply Voltage 3.3V
Frequency Range 50~200MHz
Supply Current 80mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) Vcc-1.62V/Vcc-1.025V
Rise (Tr) /Fall (Tf) Time 1ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Lineartiy 10% Max.
Phase Jitter (12KHz~20MHz) 1pS Max.
Packing Unit 3000pcs./Reel

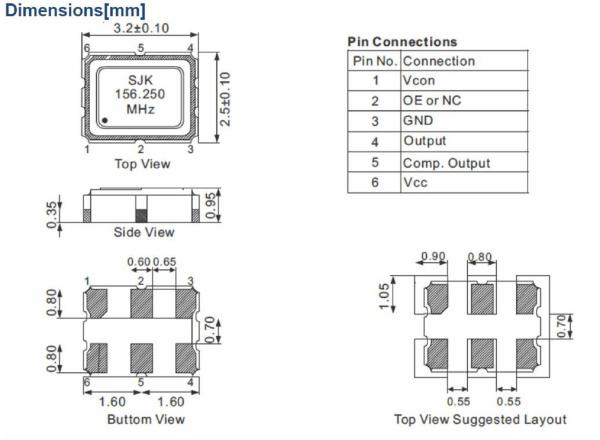

Dimensions[mm]
