SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
Specifications
Brand Name :
SJK
Model Number :
SJK8918BI
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
100pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
8Kpcs per day
Delivery Time :
3 days
Packaging Details :
3Kpcs/Reel
Model :
SJK8918 MEMS Oscillator High Temperature
Frequency range :
1MHz to 110MHz
Frequency stability :
±20ppm
Output type :
LVCMOS
Operating temperature :
-40 to +105℃
Voltage supply :
1.8V
Package size :
2.0x1.6mm
Aging :
±1 ppm per year
Standby Mode :
Yes
Output Frequency Stability :
±5 ppm to ±50 ppm
Frequency Pulling :
±5 ppm to ±50 ppm
Enable/Disable Function :
Yes
Phase Jitter :
0.5 ps RMS (LVPECL)
Operating Temperature Range :
-40°C to +85°C
Output Load :
15 pF to 50 pF
Description

SJK8918 MEMS Oscillator for Industrial Medical and Other High-Temperature Applications

Features

  • Frequencies between 1 MHz and 110 MHz accurate to 6 decimal places

  • Operating temperature from -40°C to 125°C. Available -55°C option

  • Supply voltage of 1.8~3.3V

  • Excellent total frequency stability as low as ±20 ppm

  • Low power consumption of 3.5 mA typical at 1.8V

  • LVCMOS/LVTTL compatible output

  • Industry-standard packages: 2.0x1.6, 2.5x2.0, 3.2x2.5, 5.0x3.2, 7.0x5.0 mm

  • RoHS and REACH compliant, Pb-free, Halogen-free and Antimony-free

  • Applications: Industrial, medical, non AEC-Q100 automotive, avionics and other high-temperature applications, sensors, PLC, servo, networking equipment, medical video

    cam, asset tracking systems, etc.

Specifications

Type SiT8918 MEMS
Output Type LVCMOS/HCMOS
Frequency Range 1~110MHz
Supply Voltage 1.8~3.3V
Frequency Stability ±20ppm, ±25ppm, ±50ppm, or specify
Current Consumption 4.7mA Max.
Standby Current 8.5μA Max.
OE Disable Current 4.5mA Max.
Operating Temperature -40~+105℃ /-40~+125℃
Duty Cycle 45~55%
Rise/Fall Time 3ns Max.
Voltage Vol (Max.)/Voh (Min.) 10%Vcc /90%Vcc
Voltage Vil (Max.)/Vih (Min.) 30%Vcc /70%Vcc
Input Pull-up Impedance 150KΩ Max. (Pin1 Logic High)
2MΩ Min. (Pin1 Logic Low)
Start-up Time 5ms Max.
Enable/Disable Time 130ns Max.
Resume Time 5ms Max.
RMS Period Jitter 3ps Max.
Peak to Peak Period Jitter 25ps Max.
RMS Phase Jitter (12KHz~20MHz) 2ps Max.
Storage Temperature -65~+150℃
Packing Unit

2016/2520/3225: 3000pcs./reel

5032/7050: 1000pcs./reel

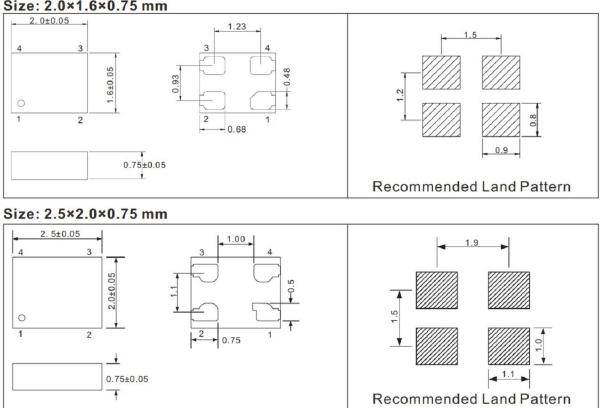

Dimensions [mm]

SJK8918 MEMS Oscillator For Industrial Medical And High Temperature

SJK8918 MEMS Oscillator For Industrial Medical And High Temperature
