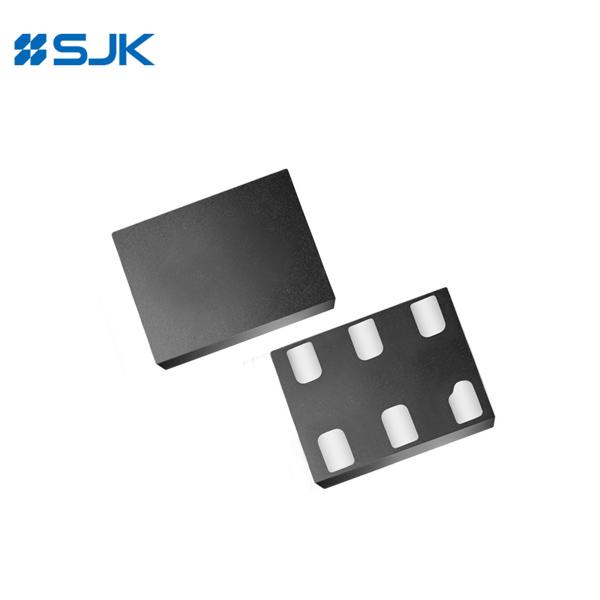

SiT9366 Ext Industrial Temp MEMS Oscillator 2.25V To 3.63V
SiT9366 Ext Industrial Temp MEMS Oscillator 2.25V To 3.63V
SiT9366 Ext Industrial Temp MEMS Oscillator 2.25V To 3.63V
SiT9366 Ext Industrial Temp MEMS Oscillator 2.25V To 3.63V
Specifications
Model :
SiT9366 MEMS LVPECL/LVDS Output
Frequency Range :
1~220MHz
Supply Voltage :
2.5V, 2.8V, 3V, 3.3V, 2.25~3.63V
Output Type :
LVDS, LVPECL
Frequency Stability :
u00b110ppm, u00b120ppm, u00b125ppm
Size :
3.2u00d72.5, 5.0u00d73.2, 7.0u00d75.0 mm
Applications :
10G Ethernet, SATA, Storage, Server, Telecommunications, Base station, etc
Description
Specifications and Dimensions

Features

Any frequency between 1MHz to 220MHz accurate to 6 decimal places

Wide temperature ranges from -40ºC to 105ºC

0.1ps RMS phase jitter over 12KHz to 20MHz

Industrial and extended commercial temperature range

LVDS & LVPECL output signaling types

Size with 3.2×2.5, 5.0×3.2, 7.0×5.0 mm

Automatic mounting and reflow soldering

Applications: 10G Ethernet, SONET, SATA, SAS, Telecom, Storage, Server, etc

RoHS Compliant / Pb Free

Specifications

Type SiT9366 MEMS
Output Type LVDS, LVPECL
Frequency Range 1~220MHz
Supply Voltage 2.5V/2.8V/3V/3.3V/2.25~3.62V
Frequency Stability ±10ppm~±25ppm, or specify
Operating Temperatuer -40~+85℃, -40~+105℃
Input Voltage High (VIH) 70% Vdd
Input Voltage Low (VIL) 30% Vdd
Input Pull-up Impedance 250KΩ Μax. (Pin1 Logic High)
2MΩ Μin. (Pin1 Logic Low)
Start-up Time 3ms Max.
Resume Time 3.8μs Max.
Duty Cycle 45~55%
Current Consumption 89mA Max.
OE Disable Supply Current 58mA Max.
Differential Output Voltage 450mV Max.
Output Disable Leakage Current 1μΑ Μax.
Standby Current 100μA Max.
VOD Magnitude Change 50mV
Offset Voltage 1.375V Max.
VOS Magnitude Change 50mV Max.
Rise/Fall Time 290ps Max.
OE Enable/Disable Time 3.8ns Max.
RMS Period Jitter 1.6pS Max.
RMS Period Jitter (Random) 0.32pS Max.
Storage Temperature Range -60~+150℃
Packing Unit

3225: 3000pcs./reel

5032 / 7050: 1000pcs./reel

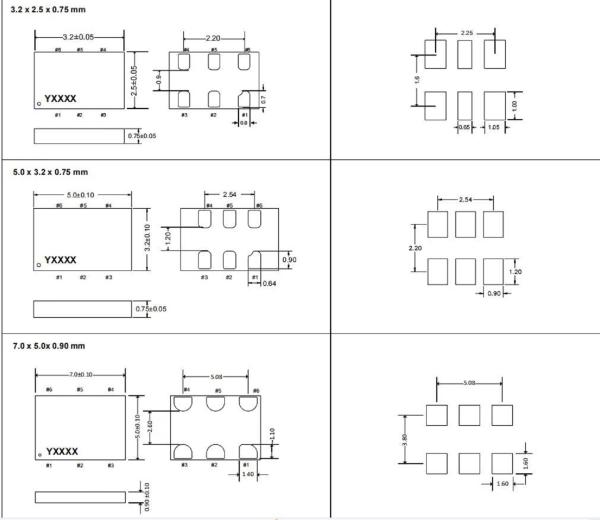

Dimensions [mm]
