1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
1.5KW 2 Heads Edge Rounding Deburring Machine For Grinding / Slag Removal
Specifications
Brand Name :
SKD
Model Number :
MS13RR
Place of Origin :
China
Name :
Edge Rounding Deburring Machine
Type :
Sanding
Function :
Deburring, Grinding, Slag Removal, Finishing
Max Working Width :
1350mm
Work piece Max Thickness :
60mm
Table Lifting Motor :
1.5kw
MOQ :
1 set
Price :
USD10000-350000
Packaging Details :
Shrink Wrapped or Woodcase
Delivery Time :
20-60 days
Payment Terms :
TT
Supply Ability :
70-100set per year
Description

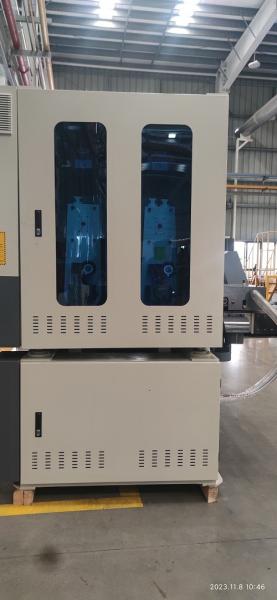

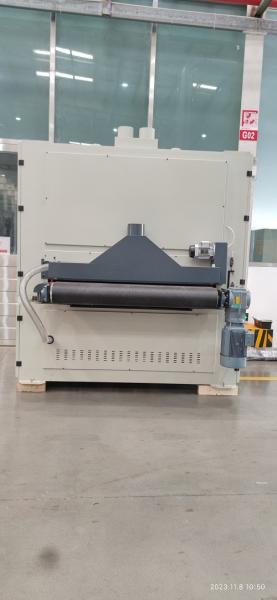

Metal Wide Belt Sander

General Description
This is a metalworking wide belt sander for deburring, sanding, polishing, finishing, slag removal and texturing. With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .
The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.
SPECIFICATIONS
  1. Abrasive Belt Size 2500x1380mm
  2. Motor : 22kw +22kwwith frequency control
  3. Table Lifting Motor: 1.5kw
  4. Number of Heads :2
  5. Sanding Drum Diameter: 240mm
  6. Work piece fix :Vacuum
  7. Vacuum Area:1250×200mm
  8. Speed setting of sanding drum: Frequency converter control
  9. Sanding Drum RPM: 1720
  10. Power supply: 380v 50Hz or on request
  11. Dust port size: drum 150mm x 6, space 100mm x 4
  12. Automatic Thickness Control: Yes (Thickness or)
  13. Weight 3.9 ton
  14. Work piece Max Width 1350mm
  15. Work piece Max Thickness 60mm
  16. Work piece Min. Length 100mm
