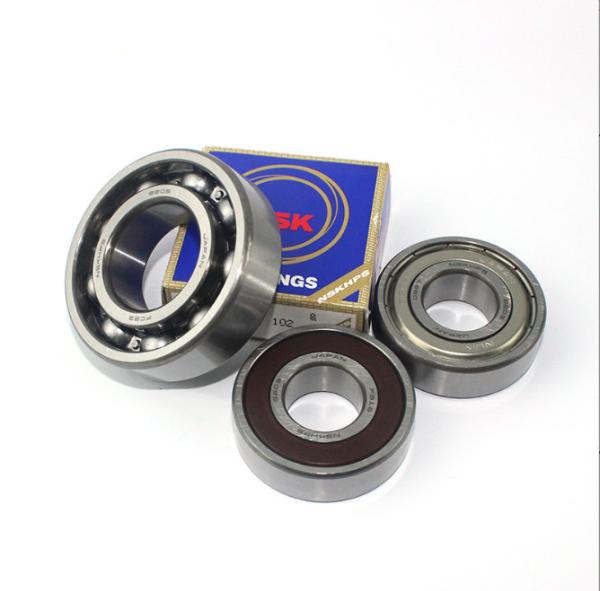

Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
Specifications
Brand Name :
NSK HDBB
Model Number :
6208 DDUC3
Certification :
ISO9001 & GB307
Place of Origin :
JAPAN CHINA
MOQ :
10 Pcs
Payment Terms :
T/T , Western Union, RMB
Supply Ability :
800,000 Pcs per Month
Delivery Time :
5-7 Works days
Packaging Details :
Single Color Box/Industrial Packing
Model :
6208 DDUC3
No. of Row :
Single Row
Structure :
Deep Groove
Type :
Ball
Feature :
Low noise Long life
Application: :
Automotive,Tractor,Motocyle, Compressor, Pump
Seal :
DDU
Clearance :
C3
Description

NSK 6208 DDUC3 High Quality Deep Groove Ball Bearing 40x80x18mm Hot Sale Dustproof Bearing

1. Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they can't handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.

  • Bearings are supplied in an open, shielded (ZZ), or sealed (2RS) design.
  • Many sizes are also available with a snap ring installed on the bearing's outer ring.
  • Open bearings are supplied with a light oil coating and are used in oil bath and oil misting applications.
  • Sealed bearings are supplied with a contacting lip seal that excels in protecting the bearing from liquids and other foreign contaminants. The inherent design creates friction, drag, and in turn heat; factors that require consideration in high speed applications.
  • Shielded bearings are provided with non-contacting metal shields that protect against larger particles entering the bearing, but do not protect against liquids. They add no friction during operation and therefore do not generate heat build-up.

2. Some list of deep groove ball bearing for your reference firstly, more models to contact us for details pls. Thank you.

Item number ID OD Width Cr Cor Speed for grease lubrication Oil lubrication speed weight
(mm) (mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
6208 40 80 18 29.5 18 8000 10000 0.37
6300 10 35 11 7.65 3.48 18000 24000 0.053
61801 12 21 5 1.9 1 24000 32000 0.006
61901 12 24 6 2.9 1.5 22000 28000 0.011
16001 12 28 7 5.1 2.4 20000 26000 0.024
6001 12 28 8 5.1 2.38 20000 26000 0.022
6201 12 32 10 6.82 3.05 19000 24000 0.037
6301 12 37 12 9.72 5.08 17000 22000 0.06
61802 15 24 5 2.1 1.3 22000 30000 0.007
61902 15 28 7 4.3 2.3 20000 26000 0.017
16002 15 32 8 5.6 2.8 19000 24000 0.025
6002 15 32 9 5.58 2.85 19000 24000 0.03
6202 15 35 11 7.65 3.72 18000 22000 0.045
6302 15 42 13 11.5 5.42 16000 20000 0.082
61803 17 26 5 2.2 1.5 20000 28000 0.008
61903 17 30 7 4.6 2.6 19000 24000 0.018
16003 17 35 8 6 3.3 18000 22000 0.032
6003 17 35 10 6 3.25 17000 21000 0.04
6203 17 40 12 9.58 4.78 16000 20000 0.065
6303 17 47 14 13.5 6.58 15000 18000 0.115
6403 17 62 17 22.7 10.8 11000 15000 0.27
61804 20 32 7 3.5 2.2 18000 24000 0.018
61904 20 37 9 6.4 3.7 17000 22000 0.036

Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3

3. Here are examples of applications in which deep groove ball bearings might be used:​

Why Choose Us

1 . The most complete types of bearings are available for purchase
2 . A variety of bearing quality options are available
3 . Professional and technical personnel docking and negotiation
4 . Advanced testing equipment provides protection
Dustproof Single Row NSK Deep Groove Ball Bearing 40x80x18mm 6208 DDU C3
