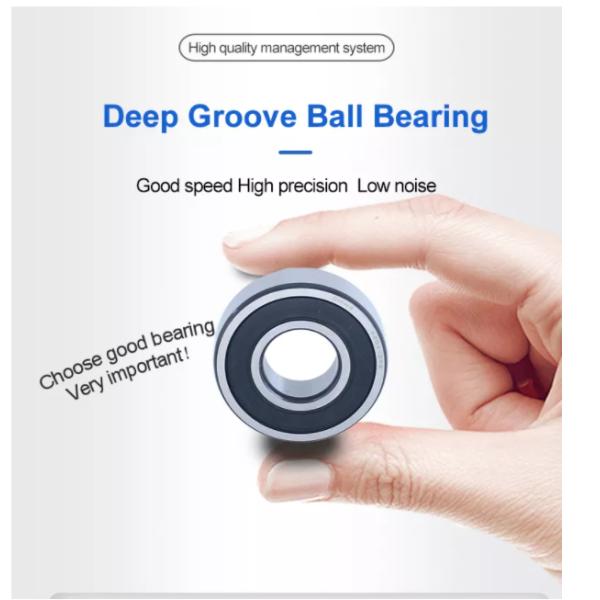

6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery
6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery
Specifications
Brand Name :
HDBB
Model Number :
6310ZZ 2RSC3 6311 6312
Certification :
ISO9001 & GB307
Place of Origin :
CHINA
MOQ :
10 Pcs
Payment Terms :
T/T , Western Union, RMB
Supply Ability :
800,000 Pcs per Month
Delivery Time :
5-7 Works days
Packaging Details :
Single Color Box/Industrial Packing
Model :
6310ZZ 2RSC3 6311 6312
Precision Rate :
P0,P6,P5,P4,P2
Structure :
Deep Groove Ball
Seals :
2RS(Rubber seals), ZZ(Iron seals)
Material :
Chrome Steel, Stainless Stee
Cage :
Steel Cage Brass Cage
Surface Treatmen :
Nitridation / Rabbet
Technics :
Salt bath quenching
Description

6310ZZ 2RSC3 6311 6312 Ball Bearing High Precision Used In Agricultural Machinery Gearbox Textile Pump

1. Description of Deep groove ball bearing

Product Name
DEEP GROOVE BALL BEARING
Material
Chrome Steel ,Carbon steel,Stainless steel
Series
Series 6000 , 6200 , 6300 , 6400 , 6900 ,6800 , etc.
Clearance
C2 ,C0 ,C3 ,C4 ,C5
Precision grade
P0 , P6 , P5 , P4 , P2 or ABEC-1 , ABEC-3 , ABEC-5 , ABEC-7 , ABEC-9
Reference Standard
DIN620(Germany) , ANSI(America) , ISO , INA , NTN , NSK etc.
Delivery Date
Normally ready goods and stock within 7 days
Used
Electric machine, motocycle,ATM,fan,conveyor, cement mixer etc
Item
6310 open ZZ 2RS
Size
ID50 x OD110 x W27mm,1.0563kg
Radius (min.r)
2mm/0.079 inch
Basic load Rating KN
Dynamic 47.58 C
Static 35.71 C.
Ball complement
NO 8
Size 19.05mm
Max Runout Speed
6100r/min with grease
7300 r/min with oil
Item
6311 open ZZ 2RS
Size
ID55 x OD120 x W29mm,1.3391kg
Radius (min.r)
2mm/0.079 inch
Basic load Rating KN
Dynamic 55.05 C
Static 41.91 C.
Ball complement
NO 8
Size 20.638mm
Max Runout Speed
5600r/min with grease
6700 r/min with oil
Item
6312 open ZZ 2RS
Size
ID260 x OD130 x W31mm,1.710kg
Radius (min.r)
2.1mm/0.083 inch
Basic load Rating KN
Dynamic 62.88 C
Static 48.6 C.
Ball complement
NO 8
Size 22.225mm
Max Runout Speed
5200r/min with grease
6200 r/min with oil

2. 6300 Seires Model List of Deep groove ball bearing

Number Specification Rated Load(KN) Speed(r/min) Weight
D(mm) D(mm) W(mm) Cr(N) Cor(N) Grease Oil kg
6300 10 35 11 6.448 2.72 16000 20800 0.053
6301 12 37 12 7.8 3.32 15200 19200 0.06
6302 15 42 13 9.12 4.32 13600 16000 0.082
6303 17 47 14 10.8 5.24 12800 15200 0.12
6304 20 52 15 12.72 6.24 10400 12800 0.14
6305 25 62 17 18 9.28 8800 11200 0.23
6306 30 72 19 22.48 12.8 7200 8800 0.35
6307 35 80 21 26.56 15.2 6800 8000 0.46
6308 40 90 23 32.8 19.2 6000 7200 0.63
6309 45 100 25 42.16 25.2 53600 6400 0.83
6310 50 110 27 49.44 30.4 5040 6000 1.05
6311 55 120 29 57.2 36 4480 5360 1.35
6312 60 130 31 65.52 41.6 4000 4800 1.7

6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery

Ball bearing Structure :

6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery

6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery

3. Application of deep groove ball bearing

Here are examples of applications in which deep groove ball bearings might be used :​

  • Electric motors and generators
  • Agriculture
  • Material handling
  • Industrial transmissions
  • Food and beverage
  • Industrial pumps
  • Industrial fans
  • Two and three wheelers
  • Cars and light trucks

6310ZZ 2RSC3 6311 6312 High Precision Ball Bearing For Agricultural Machinery
