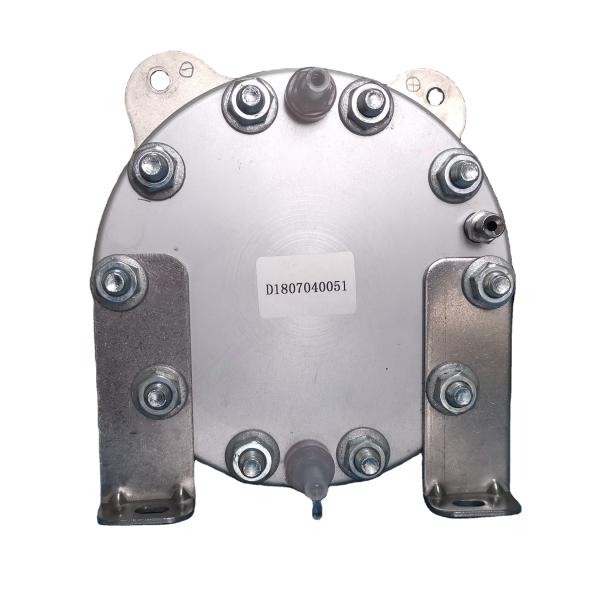

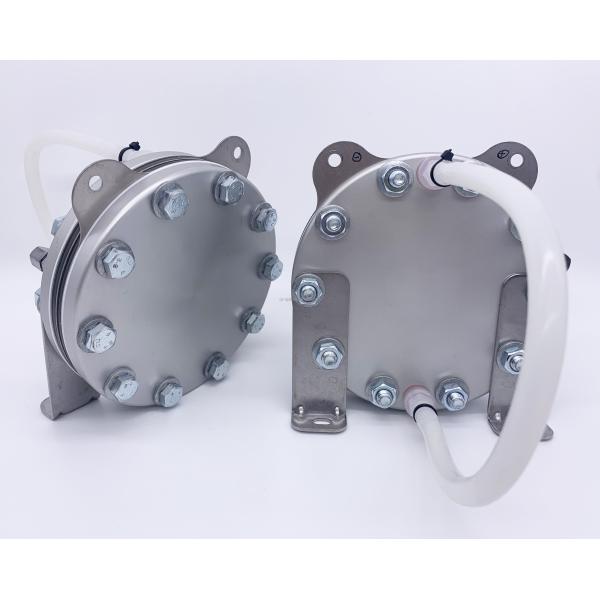

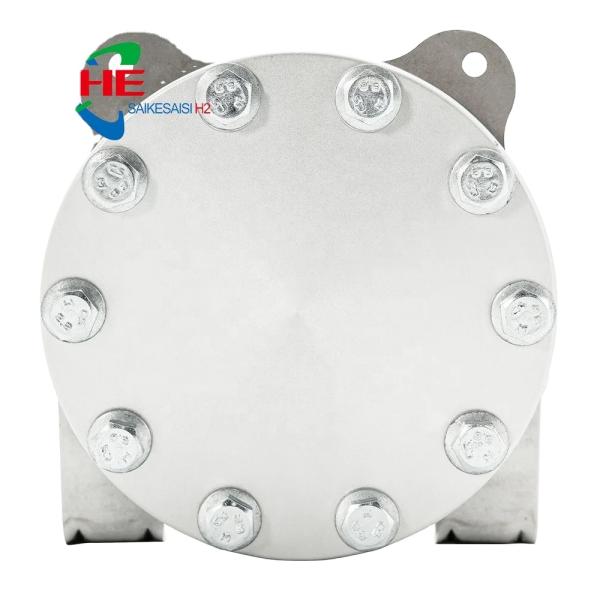

300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
Specifications
Place of Origin :
Shandong, China
Brand Name :
Saikesaisi
Production Rate :
300ml/min
Weight :
1.5kg
Dimension(L*W*H) :
138X68X150MM
Warranty of core components :
12 months
Product name :
PEM electrolyser
Model :
QLC-300
Hydrogen production rate :
0-300ml/min
Technology :
PEM
Working current :
0-45A
working Voltage :
1.8-2.5V
Max pressure :
7 Bar
Warranty time :
12months
Net weight :
1.5KG
Gross Weight :
2.5KG
Price :
$580.00/pieces 1-4 pieces
Description
Product Description
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
PEM Technology
The proton exchange membrane (PEM), which only allows water and positive ions to cross between compartments. The membrane also serves as the electrolyte in the cell, eliminating the need for hazardous liquid electrolytes such as concentrated potassium hydroxide.
PEM water electrolysis simply splits pure deionized water (H2O) into its constituent parts, hydrogen (H2) and oxygen (O2), on either side of this membrane. When a DC voltage is applied to the electrolyzer, water fed to the anode, or oxygen electrode, are oxidized to oxygen and protons, while electrons are released. The protons (H+ ions) pass through the PEM to the cathode, or hydrogen electrode, where they meet electrons from the other side of the circuit, and are reduced to hydrogen gas. The two reactions that occur in the cell are as follows:
1).2H2O -> 4H+ + 4e- +O2
2).4H+ + 4e- -> 2H2
3).Thus, the only possible components of the streams are hydrogen, oxygen and water moisture, as shown in the Figure below.
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
Specification
Product name
PEM electrolyser
Model
QLC-300
Hydrogen production rate
0-300ml/min
Technology
PEM
Working current
0-45A
working Voltage
1.8-2.5V
Max pressure
7 Bar
Warranty time
12months
Net weight
1.5KG
Gross Weight
2.5KG
Packing & Delivery
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

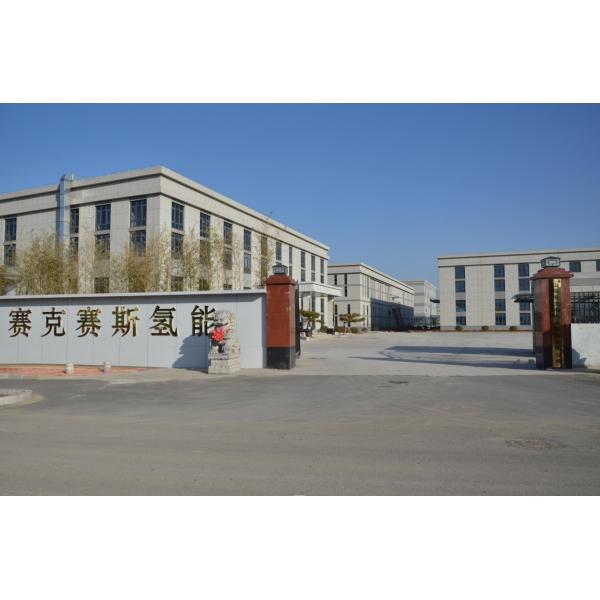

Company Profile
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology
300ml/min Hydrogen Production PEM Electrolyzer with Advanced Electrolysis Technology

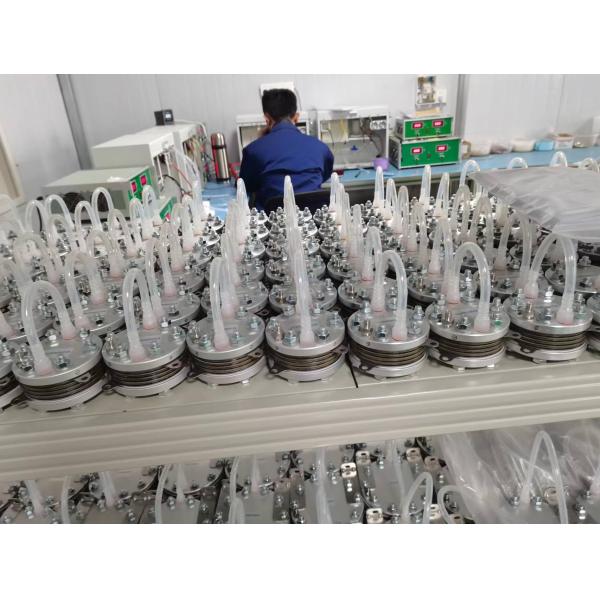

Shandong Saikesaisi Hydrogen Energy Co., Ltd. was founded in 2007, and has been deeply engaged in the research and production of PEM hydrogen generators for 15 years. The company has a perfect R & D center, equipped with functional automatic laser cutting, welding, CNC machining centers and production workshops and facilities such as general assembly, instrument control, assembly, testing, etc. the annual production capacity of hydrogen production equipment is more than 200 sets. QLS-H and QLS-M series hydrogen generators have compact system structure, reasonable process flow, high degree of automation, high cost performance (one button startup unattended), and low power consumption. The single electrolysis cell can produce the hydrogen gas in the ranges from 0.5 Nm3/h to 500 Nm3 / h. It is the only one in China to achieve the full model coverage of PEM hydrogen generators, and its main technical indicators meet or approach national standards. PEM hydrogen production technology is an efficient way of coupling renewable energy to produce hydrogen. QLS-H and QLS-M series PEM hydrogen generators have been widely used in high-end laboratories, electronic semiconductor plants, power plant hydrogen stations, hydrogen production stations, grain cutting and peak filling energy storage and other fields. because of their advantages such as high purity of hydrogen, high direct hydrogen pressure, fast start-up response and long service life. By 2022, we have provided products and services for hundreds of well-known enterprises at home and abroad, such as China National Petroleum Corporation, China Petrochemical Corporation, State Grid Corporation of China, Hyundai Group, etc., and its products have been exported to more than 30 countries and regions, such as Japan, South Korea, Germany,USA etc.
Our staffs will always adhere to strive for quality and innovation,regard “Sincerity，Carefulness，Loyalty and Perseverance” as our enterprise spirit and make this green energy product and famous brand at home and abroad.
FAQ
1. who are we?
We are based in Shandong, China, start from 2007,sell to Eastern Asia(25.00%),North America(15.00%),Southeast Asia(15.00%),Oceania(10.00%),Domestic Market(9.00%),Western Europe(8.00%),Eastern Europe(4.00%),South Asia(2.00%),South America(2.00%),Southern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Africa(2.00%),Mid East(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Hydrogen Generator / Nitrogen Generator / Hydrogen Inhalation Machine / Air Generator / PEM Electrolysis Cell

4. why should you buy from us not from other suppliers?
Shandong Saikesaisi Hydrogen Energy Co.,ltd is the earliest PEM hydrogen tech developer in China, which Firstly established in 1993 and change name to Shandong Saikesaisi Hydrogen Energy Co.,ltd in 2007.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Cash;
Language Spoken:English,Chinese
