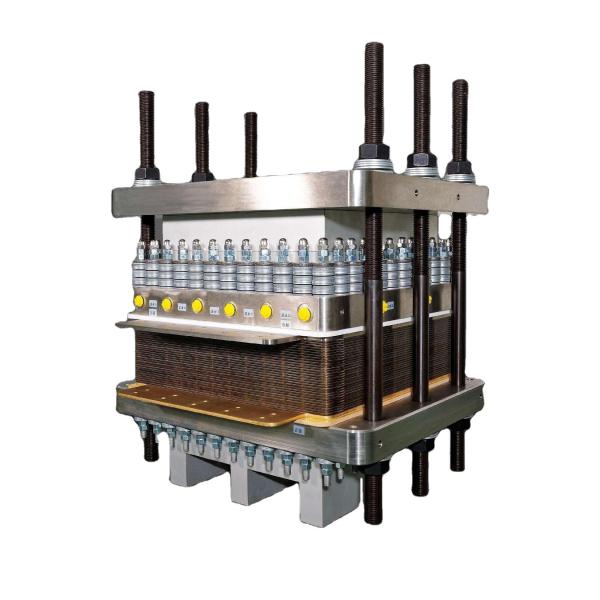

QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
Specifications
Place of Origin :
Shandong, China
Brand Name :
Saikesaisi
Price :
$250,000.00/sets 1-2 sets
Production Rate :
0-15000L/hour
Weight :
1693KG
Dimension(L*W*H) :
880*807.5*1170mm
Warranty of core components :
1 year
Model :
QLSC-H15
Technology :
PEM
Hydrogen purity :
99.999%-99.9999%
Hydrogen pressure :
0-15bar
Marketing Type :
Long time service life
Applicable Industries :
Manufacturing Plant, Energy & Mining
Video outgoing-inspection :
Provided
Core Components :
Dupont Membrane
Certificate :
CE
Condition :
New
Description

Direct Supply from 15Nm3L/hour PEM Electrolyzer with 99.999%-99.9999% Hydrogen Purity

Product DescriptionQLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
QLSC-H15 15Nm3L/Hour Hydrogenics Pem Electrolyzer With 99.999%-99.9999% Purity
Hydrogen and Oxygen Electrolyzer of water
-PEM titanum electroliser

Product Introduction
QLC titanum electroliser is an advanced patented product, which are light , highly effective, energy-saving and of environmental protection , producing hydrogen and oxygen through the electrolysis of pure water (without adding alkali). That's PEM technology.The PEM/SPE electrodes, as the core of titanum electroliser cell , are highly active catalytic electrode with nearly zero distance between the electrodes , which is formed by integrating composite catalyst with and ion membrane with high electrolytic efficiency.

Working Principle
Electrolytic water meeting the requirements (with electrical resistivity >1MΩ/ cm) , after being put into the anode chamber ofelectrolytic cell, when power is switched on ,will be decomposed at once at the anode : 2H2O = 4H+ + 2O-2. The decomposed negative oxyanion (O-2) will immediately release electron to form oxygen (O2) gas.The hydrogen proton, in the form of aqua ion (H+.XH2O),and under the action of electric field force, through SPE ion membrane, will arrive in the cathode to absorb electron to formhydrogen gas.
Specification
item
value
Place of Origin
China
Shandong
Brand Name
Saikesaisi
Production Rate
0-15000L/hour
Weight
1693KG
Dimension(L*W*H)
880×807.5×1170mm
Warranty of core components
1 year
Model
QLSC-H15
Technology
PEM
Hydrogen purity
99.999%-99.9999%
Hydrogen pressure
0-15bar
Marketing Type
Long time service life
Applicable Industries
Manufacturing Plant, Energy & Mining
Video outgoing-inspection
Provided
Core Components
Dupont Membrane
Certificate
CE
Condition
New
