Specification
Model | 030S |
Ultrasonic frequency | 40,000Hz |
Material of tank | SUS304 |
Material of shell | SUS304 |
Capacity | 4.5L |
Timer | 0~30 mins adjustable |
Temperature | 20~80℃ adjustable |
Power supply type 1 | AC 100~120V, 60Hz |
Power supply type 2 | AC 220~240V, 50Hz |
Ultrasonic power | 180W |
Heating Power | 200W |
Tank inner dimension | 300*150*100mm |
Unit dimension | 270*185*230mm |
Inner Packing size | 410*255*320mm |
N.W. | 4.75kg |
G.W. | 5.4kg |
Warranty | 1 year |
Certificate | SGS & FCC & CE & RoHS |
Features:
1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:4.5L, with digital timer & heater control

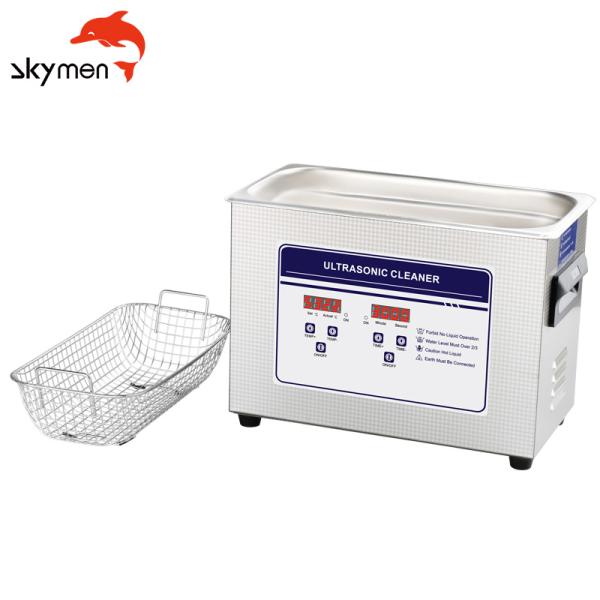

3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6. Skymen promise you 12 months warrranty.
Control panel:
Product details:
Package Includes:
1 x Digital Ultrasonic Cleaner
1 x Cleaning Basket
1 x Manual
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, printing industry.
Cleaning effect:
Suggested Ultrasonic Cleaning Procedure
In all cases manufacturers’ instructions should be followed when using an ultrasonic cleaning process. These are representative steps.
Fill the ultrasonic cleaning tank with an approved medical instrument cleaning solution such as CLN-LR012 available from Tovatech following dilution instructions provided. Turn the cleaner on to start the degassing process. This step removes entrained air in new solutions that interferes with the efficiency of cavitation and takes approximately 10 minutes.
In the meantime:
At the end of the cycle, remove the instruments from the ultrasonic cleaning bath and thoroughly rinse them to remove all traces of the cleaning solution. Deionized water rinses will avoid spotting. If the instruments are not to be immediately disinfected and sterilized be certain that they are thoroughly dried and protected. Part reassembly can occur after sterilization.
Procedures should be in place to guide the replacement of used ultrasonic cleaning solutions. In some instances it is recommended that solution be drained and tanks thoroughly cleaned and dried after each ultrasonic cleaning cycle. Most solutions available today are biodegradable, which facilitates disposal but local authorities should be consulted on proper practices.
1.Warranty:
12 months warranty for Skymen ultrasonic cleaner.
If any technical problem during warranty time, replacement parts will be sent free of charge.
Technical support is also available in whole time.
2.After-sales
Our machines undergo an extensive and strict testing and quality control procedure, ensuring every item purchased meet global quality standards.
