Surgery Tools Ultrasonic Washer for Dropper Glass Container lab tools 40KHz 15L 360W
Specification:
Model | 060S |
Ultrasonic frequency | 40,000Hz |
Material of tank | SUS304 |
Material of shell | SUS304 |
Capacity | 15L |
Timer | 0~30 mins adjustable |
Temperature | 20~80℃ adjustable |
Power supply type 1 | AC 100~120V, 50/60Hz |
Power supply type 2 | AC 220~240V, 50/60Hz |
Drain value | 1 set |
Ultrasonic power | 360W |
Heating Power | 300W |
Tank inner dimension | 330*300*150mm |
Unit dimension | 400*350*280mm |
Packing size | 465*420*345mm |
N.W. | 9.4kg |
G.W. | 10.5kg |
Warranty | 1 year |
Certificate | SGS & FCC & CE & RoHS |
Similar models with different capacity:
Model | Capacity | Tank Size | Ultrasonic Power | Heating Power | Frequency |
(L) | (L*W*H)mm | (W) | (W) | (KHz) | |
008 | 0.8 | 150*85*65 | 35 | 0 | 40 |
009 | 0.9 | 150*135*65 | 60 | 100 | 40 |
010T | 2 | 150*165*100 | 60 | 100 | 40 |
020S | 3.2 | 240*135*100 | 120 | 100 | 40 |
030S | 4.5 | 300*150*100 | 180 | 200 | 40 |
031S | 6.5 | 300*150*150 | 180 | 200 | 40 |
040S | 10 | 300*240*150 | 240 | 200 | 40 |
060S | 15 | 330*300*150 | 360 | 300 | 40 |
080S | 22 | 500*300*150 | 480 | 500 | 40 |
100S | 30 | 500*300*200 | 600 | 500 | 40 |

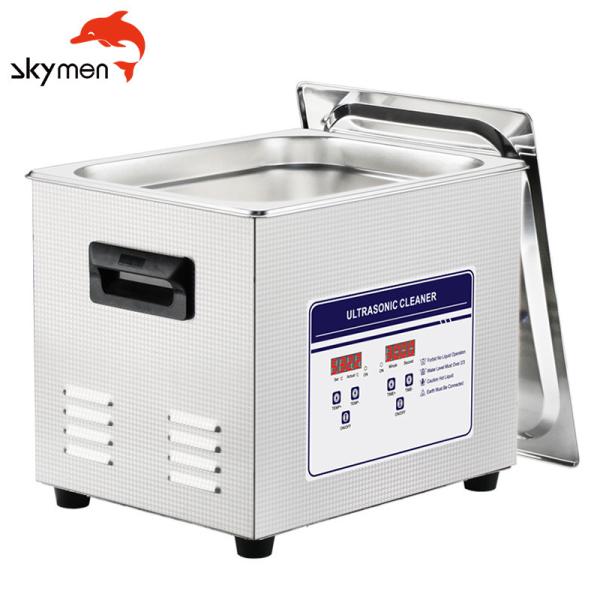

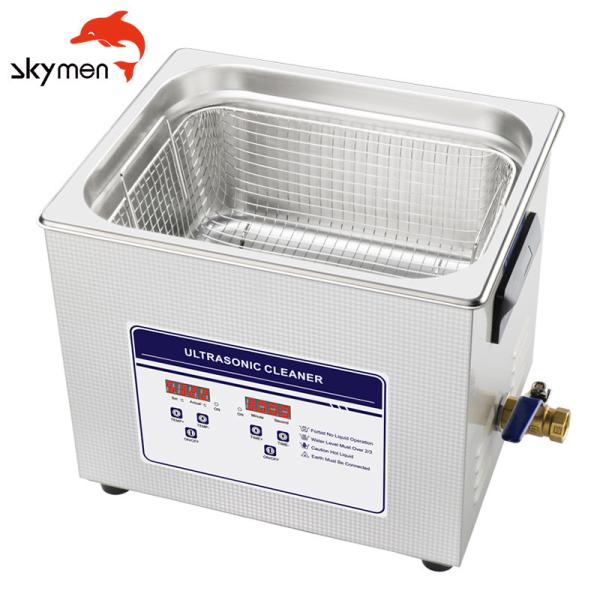

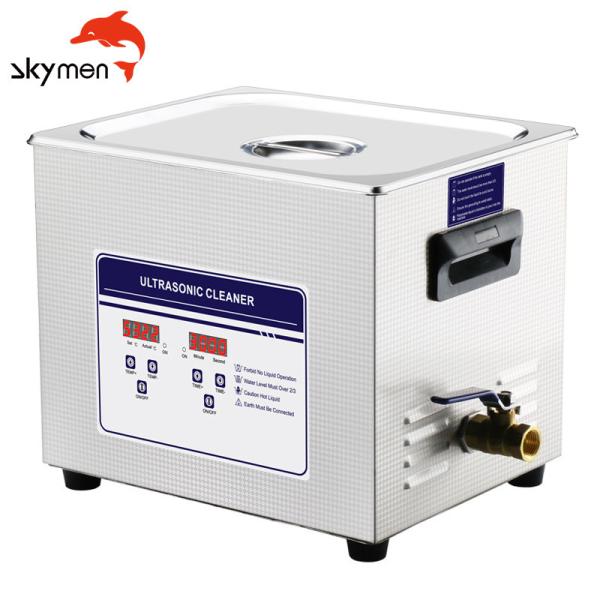

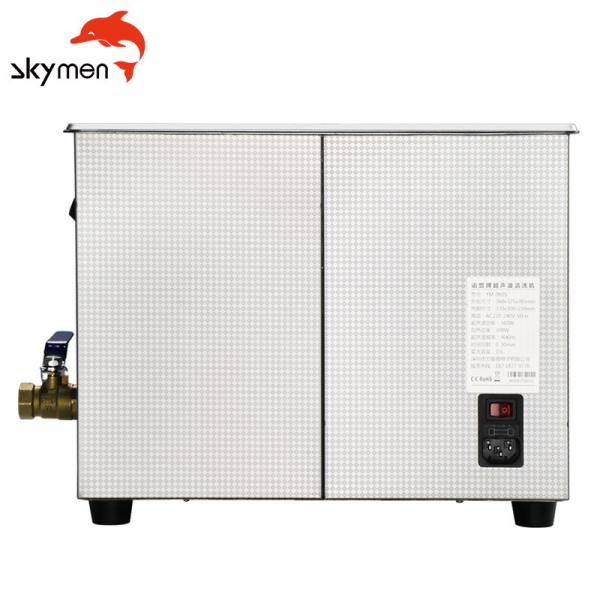

Image:
Details:
If you want choose other function,please see the buying guide as below:
1. Choose suitable tank size based on cleaning objects, size can be customized
2. Choose suitable frequency, 40kHz for common use and 28kHz for heavy duty oil removal
3. Choose tank material based on solvent, SUS304 or SUS316L
4. Other function optional, Ultrasonic cleaning tank + Ultrasonic Rinsing tank; Ultrasonic cleaning tank + Air agitation Rinsing tank; Ultrasonic cleaning tank + Water Rinsing tank; Ultrasonic cleaning tank + Hot air drying tank; Oil filtration system: detergent recycle use to save much cost.
Application:
Jewelry industry, medical industry, electronic factory, molding factory, car workshop, diesel workshop, car industry, scientific laboratory, university, dental clinics, eyeglass shop, hardware tools shop, printing industry.
