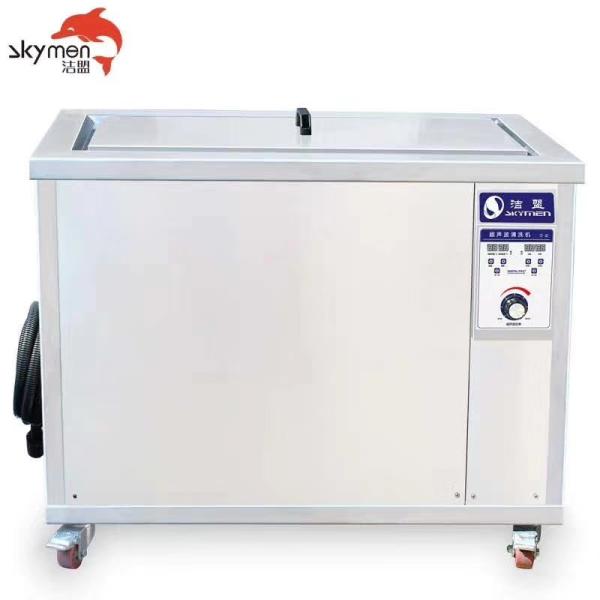

40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
Specifications
Brand Name :
SKYMEN
Model Number :
JP-301G
Certification :
CE, RoHS, FCC, REACH
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JP-301G
Internal tank size :
800*300*400mm
Frequency :
28 / 40KHz
Transducer :
30pcs
Ultrasonic Power :
1500W
Heating Power :
3000W
Capacity :
96L
Application :
Spray Flannel Mold Cleaing
Function :
Removing dirt, rust, oil, grease
Filter :
1 set
Description

Ultrasonic Cleaning Machine for Spray flannelette Mold of Mask Machine with Circulation Filter System 28KHz

Application in Spray flannelette Mold:
After a long period of use, there will be a lot of dirt on the mold surface. If you do not remove these dirt, it will affect the use of the machine, reduce the service life of the car, and even have certain safety hazards. Therefore, mold cleaning is very necessary.

Traditional cleaning is the use of manual cleaning or high pressure water guns. However, manual cleaning is difficult to clean some blind holes and gaps in the engine; the effect of high-pressure water gun on oil pollution is not very significant.

The effect of ultrasonic cleaning is very remarkable. The oil on the surface and the oil on the gap can be effectively removed under the impact of tens of thousands of ultrasonic waves. And with the application of the filtration circulation system, it can effectively filter out the concentrated treatment of oil, which greatly saves water resources and has negligible impact on the environment.

Specifications:

Model name JP-301G
Internal tank size 80*30*40mm
Application Clean Spray Flannel Mold
Function Removing dirts, oil, ruG, grease
Feature No damage to precision mold
Tank capacity 96L
Transducer 30pcs
Ultrasonic power 1500W
Heating power 3000W
Time control 0~99 minutes
Temperature control 20~95℃
Water inlet / outlet Yes
Voltage 220V / 110V
Filter 1 set

Cleaning effect of this machine:
40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System40KHz Industrial Ultrasonic Cleaner 3000W Heating With Circulation Filter System
Same models with different capacity
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Frequency
(L) (L*W*H)mm (pcs) (W) (W) (KHz)
JP-120G 38 500X300X250 12 600 1500 28/40
JP-180G 53 500X350X300 18 900 1500 28/40
JP-240G 77 550X400X350 24 120 3000 28/40
JP-300G 99 550X450X400 30 1500 3000 28/40
JP-301G 99 800X300X400 30 1500 3000 28/40
JP-360G 135 600X500X450 36 1800 4500 28/40
JP-480G 175 700X500X500 48 2400 6000 28/40
JP-600G 264 800X600X550 60 3000 6000 28/40
JP-720G 360 1000X600X600 72 3600 9000 28/40
JP-1108G 540 1000X900X600 108 5400 18000 28/40
JP-1144G 960 1200X1000X800 144 7200 27000 28/40
Cleaning video:

Main performance characteristics

The washing machine is operated by single chip software.

The cleaning machine's sound reduction cover and cleaning tank are made of high quality stainless steel.

The washing machine has good sealing performance and has sound insulation and heat insulation effect.

Digital display over temperature, over voltage, over current, low water level, no solution protection indication.

Digital memory, setting display ultrasonic working time, ultrasonic power, liquid level (and actual liquid level), heating temperature (and actual temperature).

The cleaning machine circuit has an automatic frequency sweep function, which can generate a continuous pulse jet, which makes the cleaning effect more obvious and the work is more stable.

The cleaning circuit and device are upgraded and matched, and the power conversion rate is high and the reactive power loss is low.
