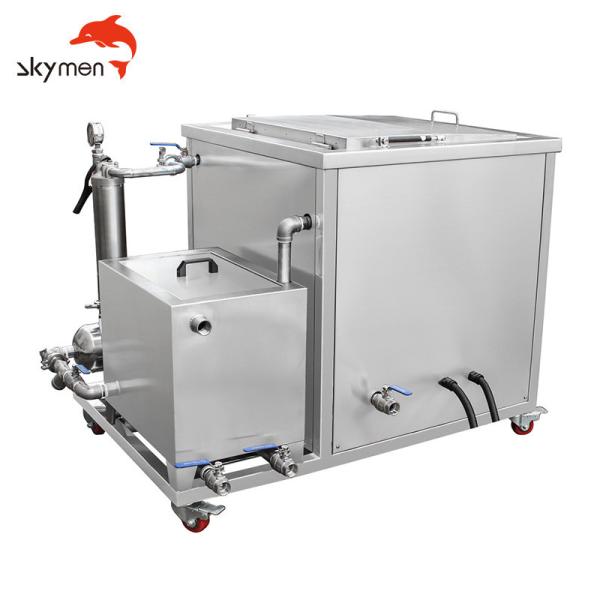

Ultrsonic Cleaning Machine 100L For Milk Tea Straw with Heating function
Specification:
Model | JP-300G |
Tank Volume | 99L |
Internal tank size | 550X450X400mm |
Transducers | 30pcs 50W of every transducer |
Ultrasonic Power | 1500W |
Heating Power | 3000W |
Frenquency | 28KHz/40KHz |
Filtration Cycle System | 1 set |
Unit size | 850*1100*800mm |
Packing size | 920*1180*950mm |
Timer | 0~99 minutes adjustable |
Heater | Room temperature~99℃ adjustable |
Shell material | SUS 201 |
Shell thickness | 1mm |
Tank thickness | 2mm |
Tank Material | SUS 304 default, can be SUS 316 |
Power Supply | AC 110V ; AC 220V |
N.W. | 160KG |
G.W. | 180KG Wrapped by film in wooden case |
Lead time | 12 working days |
Warranty | 1 year warranty period, technique support all time |
Certificates | CE, RoHS, FCC, SGS |
Advantage | Filter the dirty water; keep the water clear in tank; lower the frequency of changing water |
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
Features
1. Digital LED screen display
2. Fast and effective cleaning, convenient for users
3. Clean rings, earrings, necklaces, new features of diamonds,
4. Use only tap water or add a small amount of detergent for better cleaning
5. The cleaning effect is obvious
6. Cleaning items shine like new ones
7. Compact cover design to reduce noise
Same series with different size:
Model | Tank size | Volume | Ultrasonic Power | Heating Power | Transducer |
L*W*H (mm) | (L) | (W) | (W) | (pcs) | |
JP-120G | 500X300X250 | 38L | 600W | 1500W | 12pcs |
JP-180G | 500X350X300 | 53L | 900W | 1500W | 18pcs |
JP-240G | 550X400X350 | 77L | 1200W | 3000W | 24pcs |
JP-300G | 550X450X400 | 99L | 1500W | 3000W | 30pcs |
JP-301G | 800X300X400 | 96L | 1500W | 3000W | 30pcs |
JP-360G | 600X500X450 | 135L | 1800W | 4500W | 36pcs |
JP-480G | 700X500X500 | 175L | 2400W | 6000W | 48pcs |
JP-600G | 800X600X550 | 246L | 3000W | 6000W | 60pcs |
JP-720G | 1000X600X600 | 360L | 3600W | 9000W | 72pcs |
JP-1108G | 1000X900X600 | 540L | 5400W | 18000W | 108pcs |
JP-1144G | 1200X1000X800 | 960L | 7200W | 27000W | 144pcs |
Cleaning Effect show:
Working Principle:
The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.
