1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
Specifications
Brand Name :
Skymen
Model Number :
JP-030S
Certification :
CE ROHS FCC SGS
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Supply Ability :
8000 pcs per month
Delivery Time :
In Stock
Packaging Details :
1unit per box
Model :
JP-030S
Frequency :
40KHz
Capacity :
1.19 Gallon
Tank Size :
12*6*4 inch
Ultrasonic Power :
180W/90W
Heating power :
200W
Material :
SUS304
G.W :
5.5KG
Description

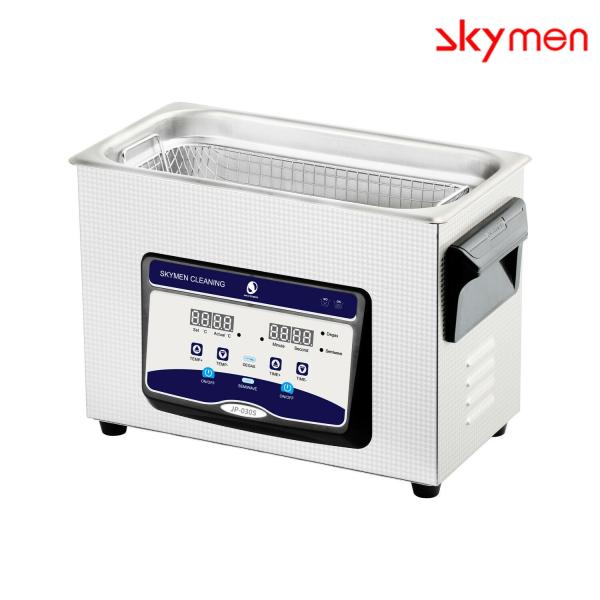

Skymen Ultrasonic Bath For Vape Juice Bottles With 200W Heater And Basket 1.19 Gallon

Model JP-030S
Ultrasonic Frequency 40KHz
Transducer Quantity 3pcs
Ultrasonic Power 180W/90W
Heating Power 200W
Tank Capacity 4.5L/1.19Gallon
Tank Size 300*150*100mm
Machine size 380*200*225mm
Packing size 410*255*310mm
Net weight 4.8KG
Gross weight 5.5KG
Time Range 1~30 minutes
Temperature Range Room temperature~80℃/176℉
Tank material SUS 304
Tank thickness 1mm
Shell thickness 0.8mm
Slope panel degree 20°
Drain Valve ×
General switch ✓
Degas ✓
Semi-wave ✓
Lid ✓
Basket ✓
Voltage 110V; 220V
Plug European Plug; US plug; Austrslian Plug; British Plu
Detergent suggestion No stronger acid or alkali
OEM Yes
OEM MOQ 100pcs
Origin Guangdong China
Business category Manufacturer
Lead time 7 days after payment if order quantity is below 20pcs
Payment term By cash; by credit card; by Paypal
Warranty 1 year

Ultrasonic cleaners operate at very low frequencies (within the human hearing range) and produce noise. When the frequency is below 20 kHz, the working noise not only becomes very large, but may exceed the limits of safety noise as stipulated by occupational safety and health laws or other regulations. In applications where high power is required to remove dirt without regard to surface damage of the workpiece, lower cleaning frequencies ranging from 20 kHz to 30 kHz are typically selected. Cleaning frequencies in this frequency range are often used to clean large, heavy-duty parts.

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

Stainless Bench Top

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

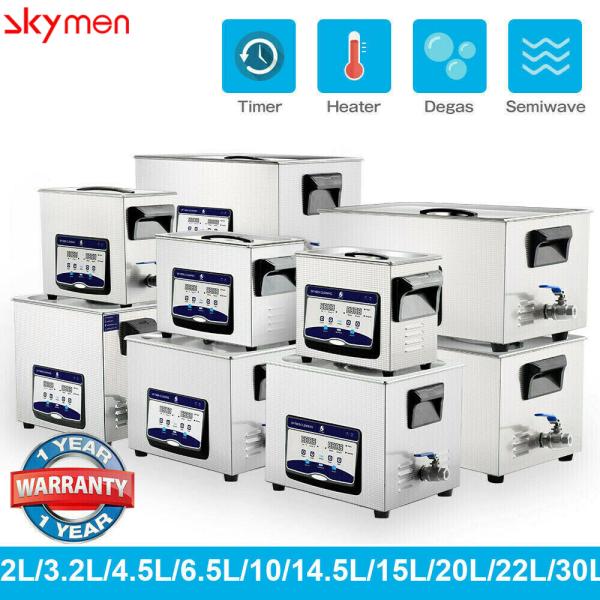

Model Capacity Tank Size Ultrasonic Power Heating Power Frequency Tank thickness Material
(L) (L*W*H)mm (W) (W) (KHz) (mm) SUS304
JP-008 0.8 150*85*65 35 0 40 1 SUS304
JP-009 0.9 150*135*65 60 100 40 1 SUS304
JP-010T 2 150*165*100 60 100 40 1 SUS304
JP-020S 3.2 240*135*100 120 100 40 1 SUS304
JP-030S 4.5 300*150*100 180 200 40 1 SUS304
JP-031S 6.5 300*150*150 180 200 40 1 SUS304
JP-040S 10 300*240*150 240 200 40 1 SUS304
JP-060S 15 330*300*150 360 300 40 1 SUS304
JP-080S 22 500*300*150 480 500 40 1 SUS304
JP-100S 30 500*300*200 600 500 40 1 SUS304

Product Show:

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

Application Area:

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

Industrial Ultrasonic Cleaning Machine

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
Model Capacity Tank Size Transducers Ultrasonic Power Heating Power Tank thickness Frequency
(L) (L*W*H)mm (pcs) (W) (W) (mm) (KHz)
JP-120ST 38 500X300X250 12 600 1500 2 28/40
JP-180ST 53 500X350X300 18 900 1500 2 28/40
JP-240ST 77 550X400X350 24 120 3000 2 28/40
JP-300ST 99 550X450X400 30 1500 3000 2 28/40
JP-301ST 99 800X300X400 30 1500 3000 2 28/40
JP-360ST 135 600X500X450 36 1800 4500 2 28/40
JP-480ST 175 700X500X500 48 2400 6000 2 28/40
JP-600ST 264 800X600X550 60 3000 6000 2 28/40
JP-720ST 360 1000X600X600 72 3600 9000 2 28/40
JP-1108ST 540 1000X900X600 108 5400 18000 2 28/40
JP-1144ST 960 1200X1000X800 144 7200 27000 2 28/40
Immersible Transducer Plate
Image:
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
Model Plate Size Transducers Ultrasonic Power Generator Suitable tank
(L*W*H)mm (pcs) (W) (set) (L)
JP-1006I 305*205*100 6 300 1 10~15
JP-1012I 355*305*100 12 600 1 30~40
JP-1018I 340*280*100 18 900 1 60~70
JP-1024I 430*280*100 24 1200 1 70~80
JP-1030I 460*370*100 30 1500 1 90~100
JP-1036I 550*450*100 36 1800 1 130~140
JP-1048I 600*450*100 48 2400 2 170~180
Immersible Transducer Tube
Image:
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
Model Tube Size Transducers Ultrasonic Power Generator Length of wire
(D*H)mm (pcs) (W) (set) (M)
JM-1003 57*180 3 150 1 1.5
JM-1006 57*300 6 300 1 1.5
JM-1012 57*550 12 600 1 1.5
JM-1018 57*750 18 900 1 1.5
JM-1024 57*1000 24 1200 1 1.5
JM-1036 57*1520 36 1800 1
Immersible Transducer Plate/tube can be put in any tank, but it doesn't have heating function.
The price of tube is much higher than plate, Ultrasonic Tube is only used for special purpose, such as in Lab.
Our Certificates:
CE, RoHS, FCC, REACH
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles
Skymen factory and warehouse
1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

1.19 Gallon Benchtop Ultrasonic Bath SUS304 For Juice Bottles

Ultrasonic cleaning machines are widely used in surface coating processing industry, machinery industry, electronics industry, medical industry, semiconductor industry, watch and jewelry industry, optical industry, textile printing and dyeing industry. Other industries, etc., the use of ultrasonic cleaning machine is as follows
