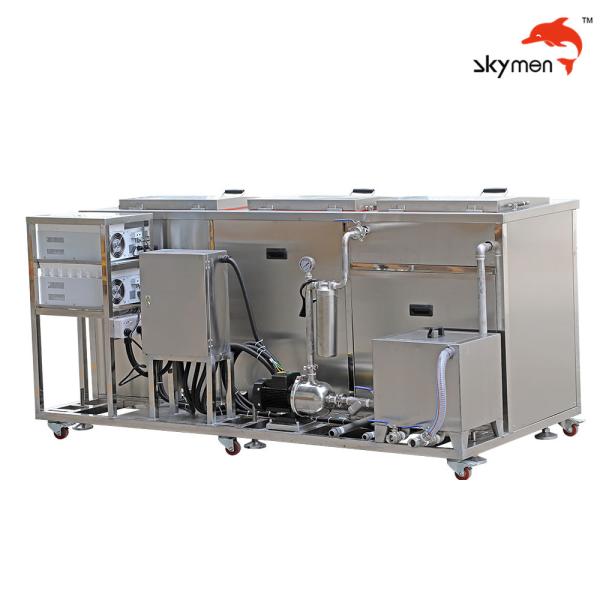

Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps
Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps
Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps
Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps
Specifications
Brand Name :
Skymen
Model Number :
JTS-3048GPH
Certification :
RoHS, CE, FCC, SGS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
800 pcs per month
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JTS-3048GPH
First tank volume :
77L
First tank size :
550X400X350mm
Transducers :
24pcs in 1st tank; 24pcs in 2nd tank
Ultrasonic Power :
1200W*2
Heating Power :
3000W*2
Function :
Ultrasonic clean+rinsing+filter+drying
Frequency :
28/40KHz
Description

3 Bins Ultrasonic Cleaner for Haemostatic forceps with Rinsing, Filter, Dryer 77L

Specification

Model JTS-3048GPH
1st Tank Volume 77L Ultrasonic Cleaning tank with filtration cycle system
2nd Tank Volume 77L Ultrasonic Rinsng tank
3rd Tank Volume 77L Drying tank
1st tank size 550X400X350mm
2nd tank size 550X400X350mm
3rd Tank size 550X400X350mm
Transducers 24pcs in 1st tank; 24pcs in 2nd tank
Ultrasonic Power 1200W*2
Heating Power of Ultrasonic tank 3000W*2
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 2215*1050*950mm
Packing size 2275*1110*1070mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 310G
G.W.

350KG Wrapped by film in wooden case
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water

Principle

The principle of the ultrasonic cleaning machine is mainly to convert the sound energy of the power ultrasonic frequency source into mechanical vibration through the transducer, and to irradiate the ultrasonic wave into the cleaning liquid in the groove through the cleaning tank wall. Due to the radiation of the ultrasonic waves, the microbubbles in the liquid in the tank can be kept vibrated by the action of the sound waves. The adsorption of the dirt and the surface of the cleaning member is destroyed, causing fatigue damage of the dirt layer to be rejected, and the vibration of the gas type bubble scrubs the solid surface.

Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power		 Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-2024GPH 500X300X250 38L*3 600W 1500W*2 750W 24pcs
JP-2036GPH 500X350X300 53L*3 900W 1500W*2 750W 36pcs
JP-2048GPH 550X400X350 77L*3 1200W 3000W*2 750W 48pcs
JP-2060GPH 550X450X400 99L*3 1500W 3000W*2 750W 60pcs
JP-2072GPH 600X500X450 135L*3 1800W 4500W*2 750W 72pcs
JP-2096GPH 700X500X500 175L*3 2400W 6000W*2 750W 96pcs
JP-2120GPH 800X600X550 264L*3 3000W 6000W*2 750W 120pcs
JP-2144GPH 1000X600X600

360L*3

 3600W 9000W*2 750W 144pcs
JP-2216GPH 1000X900X600 540L*3 5400W 18000W*2 1100W 216pcs
JP-2288GPH 12000*1000*800 960L*3 7200W 24000W*2 1500W 288pcs


Images:

Clean effect:

Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic ForcepsAdjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic ForcepsAdjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps
Adjustable Timer Industrial Ultrasonic Cleaner 3 Bin 77L For Haemostatic Forceps

What benefit can i get?
● Labor cost is substantially reduced
● Increase the Parts life
● Reduced Parts damage from cleaning
● Reduced wastages
● Environmentally friendly
● Easy to maintain system
● MOSFET / IGBT Base technology save the power
● Heater with thermostatically control increase cleaning effect
● Rust free stainless steel housing, easy to clean
● Free Lid & basket as per customer need

History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
