Specifications
Brand Name :
Skymen
Model Number :
JP-600G
Certification :
RoHS, CE, FCC, SGS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
800 pcs per month
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JP-600G
Tank Volume :
264L
Ultrasonic Power :
3000W
Heating Power :
6000W
Frequency :
40KHz/28KHz
Internal tank size :
800X600X550mm (L*W*H)
Filter Cycle System :
1 set
Gross Weight :
270KG
Description

3000W Large Voume 250L Ultrasonic Cleaner for Tyre, Auto Parts 28/40KHz With Filter

Specification

Model JP-600G
Tank Volume 264L
Internal tank size 800X600X550mm
Transducers 60pcs 50W of every transducer
Ultrasonic Power 3000W
Heating Power 6000W
Frenquency 28KHz/40KHz
Filtration Cycle System 1 set
Generator 2 set
Unit size 1060*1400*950mm
Packing size 1120*1460*1070mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 250KG
G.W. 270KG Wrapped by film in wooden case
Lead time 12 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water

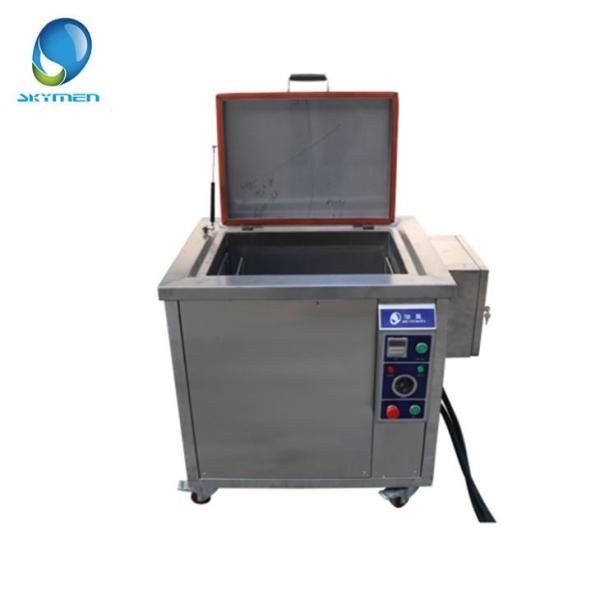

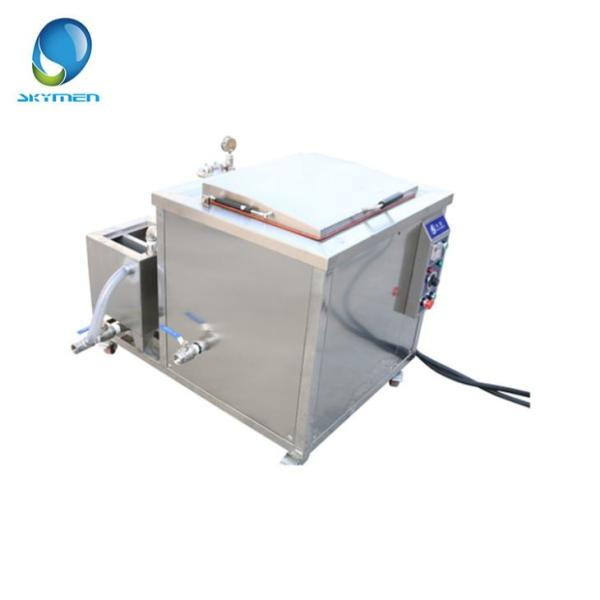

Images:
250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts
250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts
Clean effect:
250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts250L Industrial Ultrasonic Cleaner 3000 Watt 28/40KHz For Tyre / Auto Parts

Same series with different size:

Model Tank size Volume Ultrasonic
Power
Heating
Power
Transducer
L*W*H (mm) (L) (W) (W) (pcs)
JP-120G 500X300X250 38L 600W 1500W 12pcs
JP-180G 500X350X300 53L 900W 1500W 18pcs
JP-240G 550X400X350 77L 1200W 3000W 24pcs
JP-300G 550X450X400 99L 1500W 3000W 30pcs
JP-301G 800X300X400 96L 1500W 3000W 30pcs
JP-360G 600X500X450 135L 1800W 4500W 36pcs
JP-480G 700X500X500 175L 2400W 6000W 48pcs
JP-600G 800X600X550 246L 3000W 6000W 60pcs
JP-720G 1000X600X600 360L 3600W 9000W 72pcs
JP-1108G 1000X900X600 540L 5400W 18000W 108pcs
JP-1144G 1200X1000X800 960L 7200W 27000W 144pcs

How to Use an Ultrasonic Cleaner for Medical & Surgical Instruments?

Medical and surgical instruments in a variety of sizes and complexity can pose challenges when it comes to cleaning, disinfecting and sterilizing them after use. An ultrasonic cleaner is an ideal tool for the first step in this three step process to protect medical personnel and patients from possible infection due to pathogens that remain on the instruments after a procedure.

FAQ:
Q: What are the advantages of Skymen ultrasonic cleaner over traditional cleaning methods?
A:

1. Minimize the use of manual labor
2. Make cleaning and degreasing without the use of organic solvents
3. Clean hard to reach areas of products and remove all types of dirt
4. Shorten the processes such as extraction, dispersion, purification, chemical reactions
5. Eliminates costly mechanical and chemical cleaning of heat exchangers


Q: What frequency is better for my parts?
A: Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.

Q: Can ultrasonic cleaning damage parts?
A: Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe. No damage to your daily objects.

Q: What cleaning solution should I use?
A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the workpiece.

Q: Is rinsing after cleaning cycles?
A: Rinsing is recommended to remove any chemical residue that could be harmful to the part. Details can be rinsed right in your ultrasonic cleaner or in a clean water bath or in a separate sink tap, distilled or deionized water.
