Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function
Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function
Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function
Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function
Specifications
Brand Name :
Skymen
Model Number :
JP-2024G
Certification :
RoHS, CE, FCC, SGS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
800 pcs per month
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JP-2024G
First tank volume :
38L
First tank size :
500*300*250mm
Transducers :
24pcs; 12pcs of every tank
Ultrasonic Power :
1200W; 600W of every tank
Heating Power :
3000W; 1500W of every tank
Filtration Cycle System :
Connected with 1st tank
Frequency :
28/40
Description

38L Double Tank Ultrasonic Cleaner with Rinsing Function for Value, Bottles 28/40KHz

Features below
● 2 tanks: ultrasonic cleaning +ultrasonic rinsing + filtration cycle system. If you want to add more function, pls tell us.
● With digital timer and heater,easy to operate.
● SUS304/316L tank ,thinkness 2mm. Durable and anti-rust.
● Heater 20- 95°C; timer: 1-99H
● Adjustable ultrasonic power within 2400W
● With separate control ultrasonic electronic generator.
● With rollers and brakes
● Safe switch, protect machine and your life
● Machine components: control box, basket, inlet valve, drain valve, silencer cover, casters etc.

Specification

ModelJP-2024G
1st Tank Volume38L
2nd Tank Volume38L
First tank size500*300*250mm
Second tank size500*300*250mm
Transducers24pcs 50W of every transducer, 12pcs of every tank
Ultrasonic Power1200W 600W of every tank
Heating Power3000W 1500W of evey tank
Frenquency28KHz/40KHz
Filtration Cycle System1 set
Generator2 set
Unit size1350*900*750mm
Packing size1410*960*870mm
Timer0~99 minutes adjustable
HeaterRoom temperature~99℃ adjustable
MaterialSUS 304 default, can be SUS 316
Power SupplyAC 220V 3 phase ; AC 380V 3 phase
N.W.185KG
G.W.200KG Wrapped by film in wooden case
Lead time18 working days
Warranty1 year warranty period, technique support all time
CertificatesCE, RoHS, FCC, SGS
AdvantageFilter the dirty water; keep the water clear in tank; lower the frequency of changing water

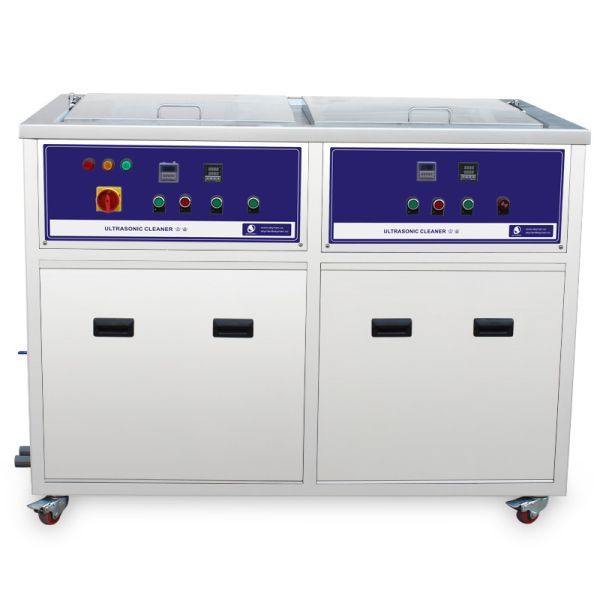

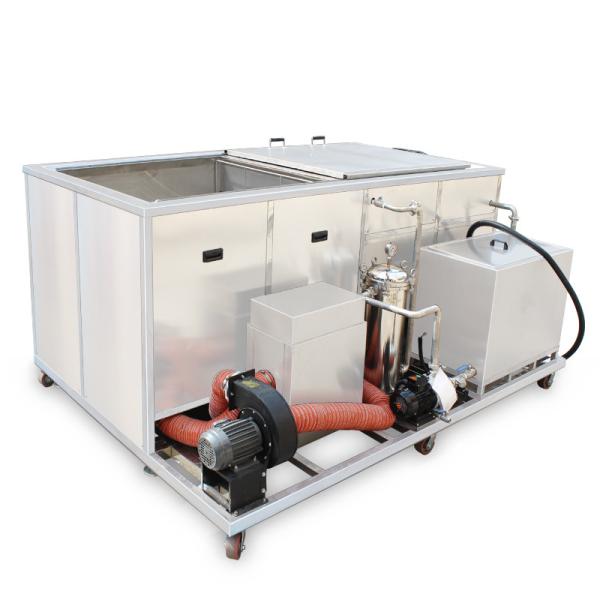

Images:
Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing FunctionValue / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing FunctionValue / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function
Clean effect:
Value / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing FunctionValue / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing FunctionValue / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing FunctionValue / Bottles Ultrasonic Cleaning Device 38L Double Tank With Rinsing Function

Same series with different size:

ModelSize of every tankTank Volume Ultrasonic
Power		Heating
Power		Transducer
L*W*H (mm)(L)(W)(W)(pcs)
JP-2024G500X300X25038L*2600W*21500W*224pcs
JP-2036G500X350X30053L*2900W*21500W*236pcs
JP-2048G550X400X35077L*21200W*23000W*248pcs
JP-2060G550X450X40099L*21500W*23000W*260pcs
JP-2072G600X500X450135L*21800W*24500W*272pcs
JP-2096G700X500X500175L*22400W*26000W*296pcs
JP-2120G800X600X550264L*23000W*26000W*2120pcs
JP-2144G1000X600X600360L*23600W*29000W*2144pcs
JP-2216G1000X900X600540L*25400W*218000W*2216pcs
JP-2288G12000*1000*800960L*27200W*227000W*2228pcs


History:
Skymen Cleaning Equipment Shenzhen Co., Ltd., was founded in 2007,which follows the brand development strategy of “based in Shenzhen, radiating throughout the country, expanding overseas”.
Skymen also owns a professional R&D team to keep the pace with international ultrasonic technology. A passionate and young sales team sell to the world through different channels.
