30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver
Specifications
Brand Name :
Skymen
Model Number :
JP-100S
Certification :
RoHS, CE, FCC, REACH
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
8000 pcs per month
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JP-100S
First tank volume :
30L
Tank size :
500*300*200mm
Ultrasonic Power :
600W
Heating Power :
500W
Frequency :
40KHz
Timer :
0~30 minutes adjustable
Temperature :
20~80℃ adjustable
Description

30L Ultrasonic Cleaner 600W for Lead frame / Capillary Tube / Salver 40KHz

Specification:

Model JP-100S
Ultrasonic frequency 40,000Hz
Material of tank SUS304
Material of shell SUS304
Capacity 30L
Drain value On the left side
Timer 0~30 mins adjustable
Temperature 20~80℃ adjustable
Power supply type 1 AC 100~120V, 50/60Hz
Power supply type 2 AC 220~240V, 50/60Hz
Ultrasonic power 600W
Heating Power 500W
Tank inner dimension 500*300*200mm
Unit dimension 585*327*333mm
Packing size 680*455*400mmmm
N.W. 15kg
G.W. 17kg
Certificate FCC & CE & RoHS & REACH

Similar models with different capacity:

Stainless Bench Top
Model Capacity Tank Size Ultrasonic Power Heating Power Frequency
(L) (L*W*H)mm (W) (W) (KHz)
008 0.8 150*85*65 35 0 40
009 0.9 150*135*65 60 100 40
JP-010T 2 150*165*100 60 100 40
JP-020S 3.2 240*135*100 120 100 40
JP-030S 4.5 300*150*100 180 200 40
JP-031S 6.5 300*150*150 180 200 40
JP-040S 10 300*240*150 240 200 40
JP-060S 15 330*300*150 360 300 40
JP-080S 22 500*300*150 480 500 40
JP-100S 30 500*300*200 600 500 40

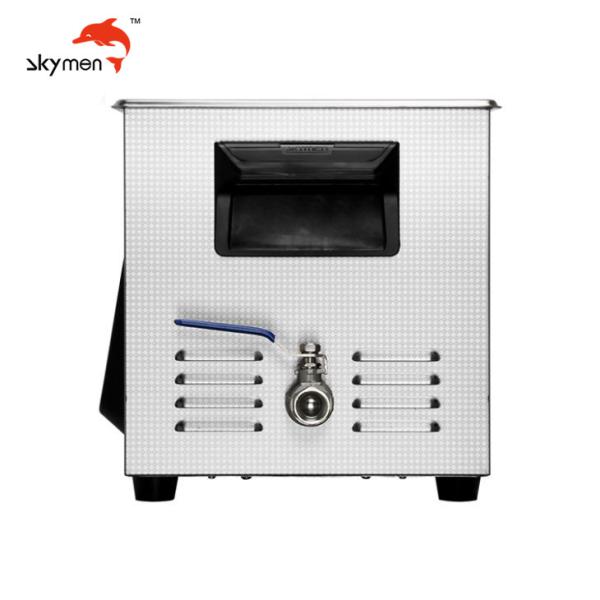

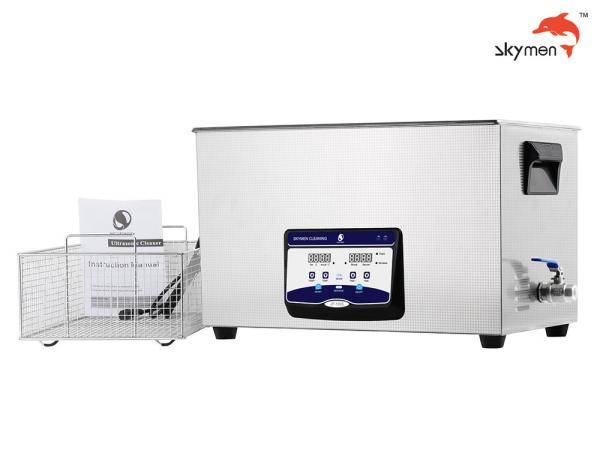

Image:

30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver

30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver

30L Ultrasonic Cleaning Equipment 600W 40KHz For Lead Frame Capillary Tube Salver

Characteristics

1. Use ordinary tap water, alcohol or solvent as cleaning solution

2. High-power transducer cleaning effect is significant, can be observed with the naked eye

3. After washing, the object shines brightly

4. Digital LCD control boot time

5. All stainless steel casing, inner liner and lid, even more upscale

6. The waterproof performance is greatly improved, and the product is safer and more durable.

7. With heating and temperature system

8. With handle and drainage system, it is more convenient
