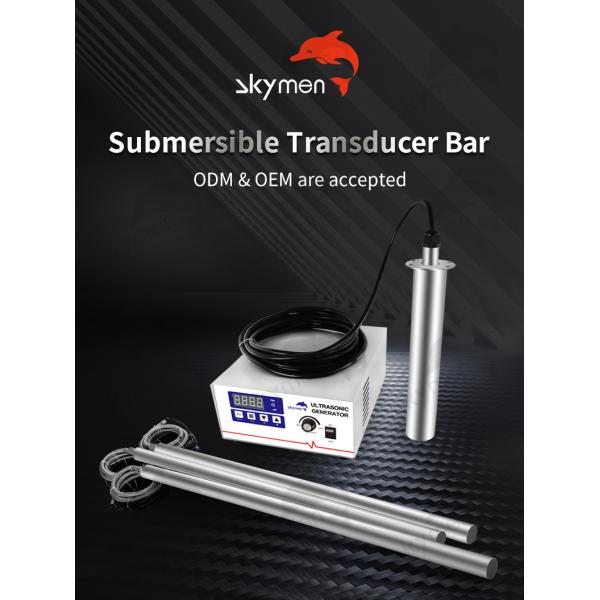

28Khz 40Khz 150W~1800W Skymen Submersible Ultrasonic Transducer Bar Waterproof And Generators For Cleaning

Immersible Submersible ultrasonic transducer vibration bar is suitable for cleaning before electroplating parts, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, glasses frame, jewelry, jewelry, glass, utensils and other industries.

Advantages of ultrasonic vibration bar:

1. Immersible Submersible Ultrasonic vibration bar is composed of vibration bar and ultrasonic generator. When the standard ultrasonic cleaning machine is not suitable for specific working environment, in addition to special specifications, it can be customized. The input vibration plate device can also be refitted into an ultrasonic cleaning machine, which can save the equipment cost and achieve the cleaning effect.

2. The shock bar is made of all stainless steel, alkali and acid resistant, and the surface of the shock bar is plated with hard chromium. The ultrasonic transducer adopts high-quality and high-performance products with high electroacoustic conversion efficiency.

3. The split structure is adopted, and the high-frequency line with socket is used between the vibration plate and the ultrasonic generator, which is convenient for use and maintenance.

4. The installation layout is flexible. According to the needs, the ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank.

5. Ultrasonic vibration bars can be customized according to customer requirements. Ultrasonic vibration bars are widely used in various industries such as cleaning before electroplating parts, clock parts, hardware and mechanical parts, polyester filter element, semiconductor silicon wafer, tools, lenses, glasses frame, jewelry, jewelry, glass, utensils and so on.

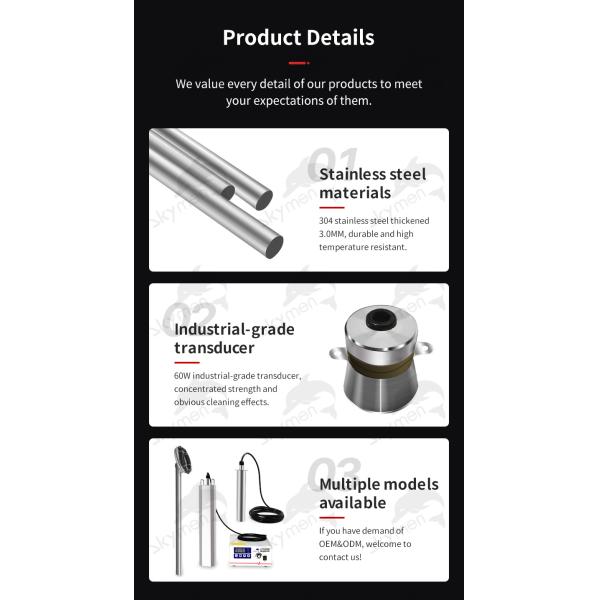

Product Details

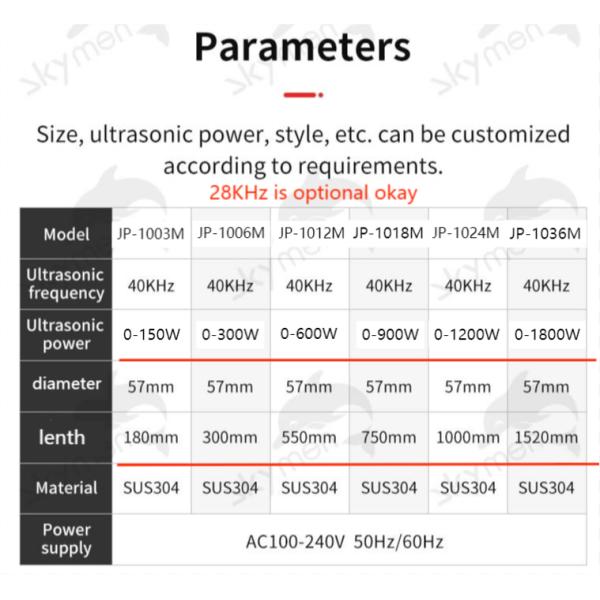

Product Parameters

Size, material, installation method and outlet location could be customized according to your requirements,
