Cast Iron Water Barrier Tie Rod Formwork Accessories 100mm / 110mm Length
Cast Iron Water Barrier Tie Rod Formwork Accessories 100mm / 110mm Length
Cast Iron Water Barrier Tie Rod Formwork Accessories 100mm / 110mm Length
Cast Iron Water Barrier Tie Rod Formwork Accessories 100mm / 110mm Length
Specifications
Brand Name :
HORIZON
Model Number :
water barrier
Certification :
SGS
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
cast iron
OEM :
Available
finishing :
natrual colour, galvanized
Size :
for tie rod dia 15mm, 20mm, 26.5mm
Application :
for water retaining wall structure
Length :
100mm, 110mm
Samples :
available
Description

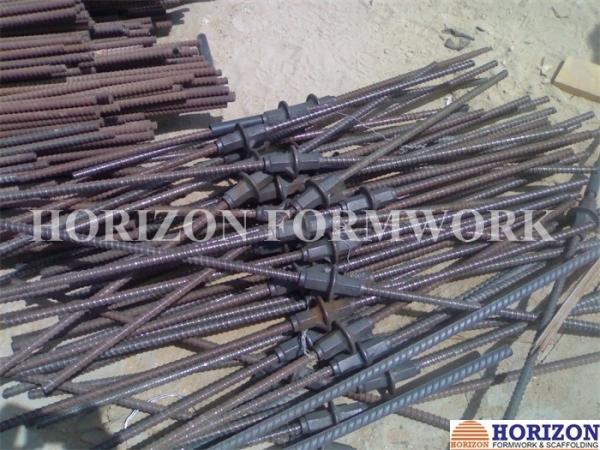

Cast Iron Water Barrier to Prevent Water Seeping Alongside the Thread Bar

Water barriers are used in water retaining structures. Casted into the concrete wall between two separate tie bars. After pouring, tie rods are removed, the water barrier remains in concrete. Allows two reducers per water barrier.

This type of water barrier is made from cast iron as one unit, which is the most cost-effective solution. To prevent the entering of concrete grout, a reducing sleeve will be installed at the transition from the water barrier nut to the plastic tube.

Water stop Bar Ø(mm) Length (mm) Plate/Spigot (mm) Weight (kg)
D15L 15 110 60/26 0.43
D15W 15 110 65/26 0.55
D20 20 160 80/31 1.26
To prevent water seeping alongside the thread bar.
The spigot size for tubes inner dia 26mm or 31mm.
Cast, self-color or galvanized; Customized size available.

Part Name Specification Weight (kg) Remark

Tie-rod

D15

D20

1.52 kg/m

2.71 kg/m

L=6m;

Special length available upon request.

Wing nut

D15

D20

0.35

0.70

 For tie-rod D15 / D20

Super plate

 D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate

120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper

D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate

 D20 0.95 Embedded in concrete as lost part

Cast Iron Water Barrier Tie Rod Formwork Accessories 100mm / 110mm Length
