Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop
Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop
Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop
Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop
Specifications
Brand Name :
HORIZON
Model Number :
tie rod system
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Steel
OEM :
Available
finishing :
galvanized
Size :
diameter 15mm
Application :
to fix formwork
Weight :
0.5kg
Samples :
available
Tech. process :
cast iron, steel machinary
Description

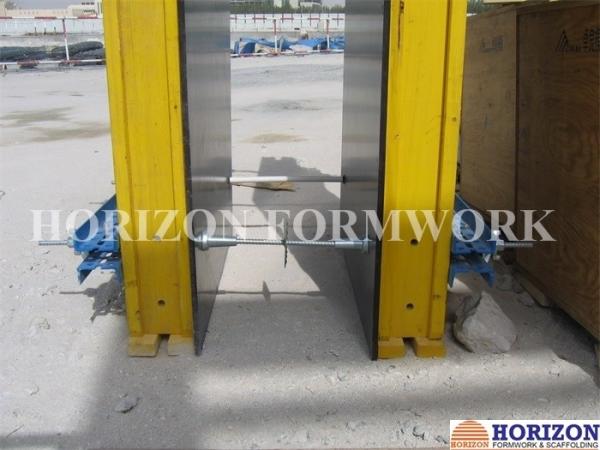

Formwork Tie Rod System With Dywidag Thread, Flanged Wing Nut and Water Stop

The Flanged Wing Nut is available in different diameters. With a larger pedestal, it allows a direct load bearing on walings.

It can be screwed on or loosened using a hexagon wrench, thread bar or hammer.

Steel cone is usually used in formwork tie rod system for easy removing the outer tie rod.

Formwork wing nut with flange:

Flanged Wing nut Bar Ø (mm) Plate dia (mm) Height/Hex. (mm) Weight (Kg)
Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop 15 90 55/27 0.50
15 100 55/27 0.62
15 110 55/27 0.80
20 120 60/36 1.00
Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop 15 64 75/27 0.34
15 100 100/27 0.62
Part Name Specification Weight (kg) Remark

Tie-rod

D15

D20

1.5 kg/m

2.7 kg/m

L=6m;

Special length available upon request.

Super plate

 D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate

120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper

D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate

 D20 0.95 Embedded in concrete as lost part

Steel Formwork Tie Rod System With Dywidag Thread , Flanged Wing Nut and Water Stop
