38mm X 600mm Scaffolding Leg Screws , Construction Screw Jacks BS1139 Standard
38mm X 600mm Scaffolding Leg Screws , Construction Screw Jacks BS1139 Standard
38mm X 600mm Scaffolding Leg Screws , Construction Screw Jacks BS1139 Standard
38mm X 600mm Scaffolding Leg Screws , Construction Screw Jacks BS1139 Standard
Specifications
Brand Name :
HORIZON
Model Number :
Screw base jack
Certification :
SGS
Place of Origin :
CHINA
MOQ :
500 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
20000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Q235 steel pipe, or solid steel
OEM :
Available
finishing :
zinc-plate, hdg, painted
Standard :
BS1139
Size :
dia38mm x 4mm, or as request
Application :
scaffolding height adjustament
Base plate :
150 x 150 x 5mm
Casting nut :
0.5kg
Description

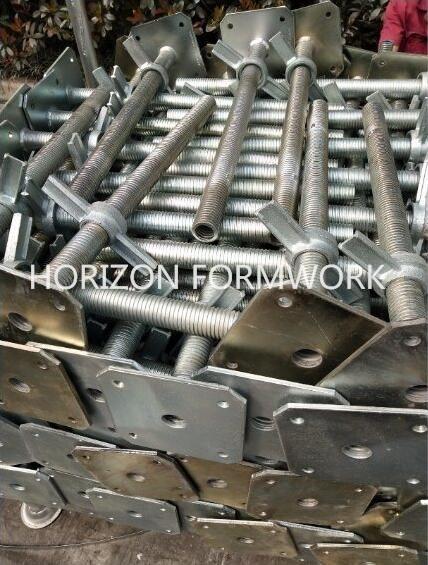

38mm x 600mm Screw Jack With Fixed Base Plate For Scaffolding Systems

Dimensions: 38mm x 600mm (various heights available)
Weight: 3.6kg.
--38mm Screw Stem fits all 48mm Scaffold Frames, Acme Threads are used on the Screw Stem.

--Heavy Duty, Hollow pipe Screw Jacks with a 150mm x 150mm Base Plate
--The 150mm x 150mm Base Plate is welded to the Screw Stem.

--The Base Plate has holes in each corner for securing (nailing) to Mud Sill
--The Nut on the Screw Stem is high-strength, cast iron for durability

--The Screw Jack with base plate allows your frames set to be leveled on uneven surfaces
--Overall length of the Screw Stem is 600mm. Request length is available.
--There is a Notch/Cut in the threads of the Screw Stem, 150mm from the top, to prevent the nut from coming off, and to keep the Screw Jack from being over-extended.
--Provides up to 450mm of adjustability
--Galvanized to prevent/minimize rusting

The screw base jack and head jack are made of high strength steel Q235 pipes, for supporting and stabilizing horizontal beams in slab construction.

Depending on special request, a big supporing area-slope of up to 6 %-can be achieved by the base plate and U-head plate.

It can fit all types of scaffold systems, such as frames, ringlock, cuplock systems and kwikstage systems.

Always work in conjunction with U head jack to adjust scaffolding sets in a easy way.

Scaffold Base Jack:

Screw /Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 120 x 120 x 5 0.25 2.75 (3.72)
Ø32(solid) x 400 (600) 120 x 120 x 5 0.30 3.10 (4.20)
Ø34(solid) x 400 (600) 120 x 120 x 5 0.40 3.50 (4.76)
Ø34(hollow) x 4 x 400 (600) 150 x 150 x 6 0.55 2.80 (3.39)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 6 0.50 2.90 (3.60)
Ø48(hollow) x 4 (5) x 600 150 x 150 x 8 1.00 5.00 (5.60)
Ø48(hollow) x 4 (5) x 820 150 x 150 x 8 1.00 6.00 (6.80)

U-head Jack:

Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)

38mm X 600mm Scaffolding Leg Screws , Construction Screw Jacks BS1139 Standard
