Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work
Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work
Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work
Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work
Specifications
Brand Name :
HORIZON
Model Number :
scaffold screw jack head
Certification :
SGS
Place of Origin :
CHINA
MOQ :
2000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
20000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Q235 steel pipe
OEM :
Available
finishing :
zinc-plate, hdg, painted
Standard :
BS1139
Size :
dia38mm x 5mm, or tailor made
Application :
scaffolding height adjustament
Base plate :
150 x 150 x 5mm
Casting nut :
0.5kg
Description

Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work

Adjustable U head screw jack is used for scaffolding system, including base head, U head and U fork head. The screws are made of solid steel rod or hollow pipe. The U head jack can be adjusted to required working height by turning jack nut.

The top U head can withstand the beam (timber beam H20, aluminium beam or steel beams, etc.).

Usually, adjustable base jack is used together with U head jack to support props and all types of tubular scaffolding systems.

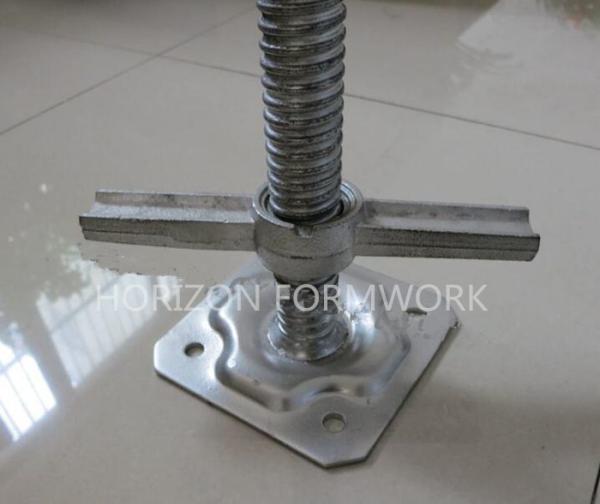

Base Jack 48mm x 800mm x 5mm

For bearing timber beams or steel beams. Slope of up to 6 % can be compensated by the head plate.

With height adjustment of 300 mm.


U-head Jack:

Screw / Tube size (mm) Base plate (mm) Nut (kg) Weight (kg)
Ø30(solid) x 400 (600) 150 x 120 x 50 x 5 0.25 3.36 (4.33)
Ø32(solid) x 400 (600) 150 x 120 x 50 x 5 0.30 3.70 (4.81)
Ø34(solid) x 400 (600) 150 x 120 x 50 x 5 0.40 4.10 (5.37)
Ø34(hollow) x 4 x 400 (600) 150 x 120 x 50 x 6 0.55 2.91 (3.74)
Ø38(hollow) x 4 x 400 (600) 150 x 150 x 50 x 6 0.50 3.61 (4.28)
Ø48(hollow) x 4 (5) x 600 180 x 150 x 50 x 8 1.00 6.24 (6.82)
Ø48(hollow) x 4 (5) x 820 180 x 150 x 50 x 8 1.00 7.20 (8.00)

Adjustable Scaffolding U Head Screw Jack Dia 48mm x 5mm for Construction Work
