Galvanized Formwork Tie Rod System Pressed Waling Plate 120x120x8mm
Galvanized Formwork Tie Rod System Pressed Waling Plate 120x120x8mm
Galvanized Formwork Tie Rod System Pressed Waling Plate 120x120x8mm
Galvanized Formwork Tie Rod System Pressed Waling Plate 120x120x8mm
Specifications
Brand Name :
HORIZON
Model Number :
Waling plate
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
pressed steel plate
OEM :
Available
finishing :
natrual colour, galvanized
Size :
120 x 120 x 6mm, 120 x 120 x 8mm,
Application :
to fix formwork
Weight :
0.65kg, 0.88kg, as per request
Samples :
available
Tech. process :
pressed
Description

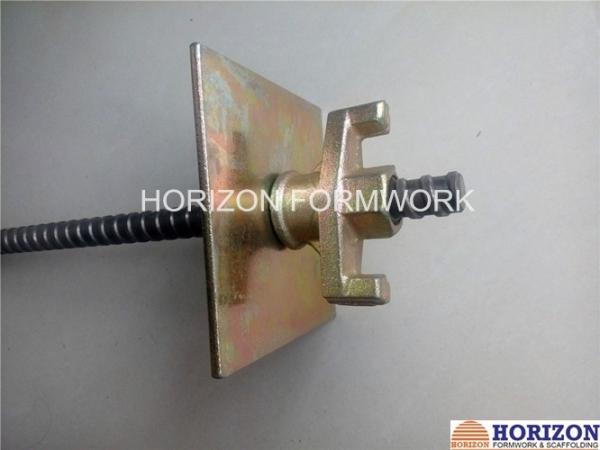

Pressed Waling Plate 120 x 120 x 8mm for Formwork Tie Rod System

The pressed waling plate is a completion to the wing nut without flange. For panel formwork with steel profiles and timber wall formwork, the square plate 120 x 120 and the rectangle plate 100 x140 mm are suitable.

Waling plate is used for timber or steel walings in conjunction with a wing nut or a hex nut for load transfer. The embossing of the plate increases its rigidity.

Load capacity depends on the contact area, the admissible bearing pressure and the thread bar that is used.

Waler plate Bar Ø (mm) Plate (mm) Hole Ø (mm) Weight (Kg)
Galvanized Formwork Tie Rod System Pressed Waling Plate 120x120x8mm 15 120 x 120 x 6 19 0.65
15 120 x 120 x 8 19 0.90
15 120 x 120 x 10 19 1.10
20 140 x 100 x 10 19 1.15

Part Name Specification Weight (kg) Remark

Tie-rod

D15

D20

1.5 kg/m

2.7 kg/m

L=6m;

Special length available upon request.

Super plate

 D15 1.28 Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

D15

D20

0.97

0.78

For tie-rod D15;

For tie-rod D20

Waling plate

120 x 120 x 6, Φ19

120 x 120 x 8, Φ19

0.65

0.85

For tie-rod and nut D15;

galvanized

Water stopper

D15

D20

0.55

0.72

Used in water resistant wall;

With tie-rod D15 / D20

Anchor plate

 D20 0.95 Embedded in concrete as lost part
