Custom Concrete Forming Accessories Spring Quick Clips For Tensioning Steel Wire Bar
Custom Concrete Forming Accessories Spring Quick Clips For Tensioning Steel Wire Bar
Custom Concrete Forming Accessories Spring Quick Clips For Tensioning Steel Wire Bar
Custom Concrete Forming Accessories Spring Quick Clips For Tensioning Steel Wire Bar
Specifications
Brand Name :
HORIZON
Model Number :
Spring rapid clamp
Certification :
SGS
Place of Origin :
CHINA
MOQ :
5000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
50000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
bags on pallets
Material :
Steel pressing
OEM :
Available
finishing :
galvanized, painting
Size :
75x110mm
Application :
tensioning formwork tie bar
Samples :
available
Description

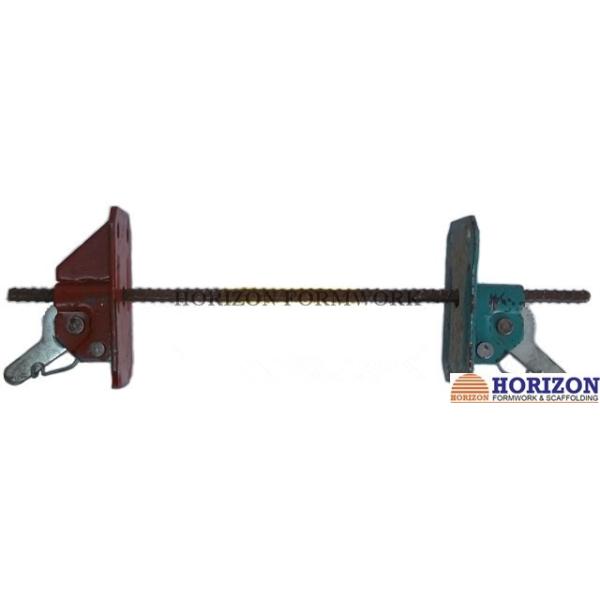

Spring Quick Clips for Tensioning Steel Wire Bar in Concrete Formwork

Spring quick clip is a fast and effective method for securing steel wire bars in light formwork applications. The tensioner tool is used to pull the wire tie bar through the clip.

Steel wire bar diameter from 5-10mm can pass through the spring clip.

Main application: bracing formwork when being used for foundations or applied to beam formwork.

Load capacity:

6mm tension bar appr. 4KN

8mm tension bar appr. 7KN

10mm tension bar appr. 11KN

Bar Ø (mm) Plate size (mm) Weight (Kg)
5-10 69 x 105 x 3 0.33
5-10 75 x 110 x 4 0.42

Custom Concrete Forming Accessories Spring Quick Clips For Tensioning Steel Wire Bar
