Specifications
Brand Name :
HORIZON
Model Number :
H20 timber beam clamp
Place of Origin :
CHINA
MOQ :
2000 PCS
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
2000pcs per week
Delivery Time :
20-25 days
Packaging Details :
bags on pallets
Material :
steel
OEM :
Yes
Application :
to tighten H20 beam and waler
Type :
steel rod type
Width :
120mm
Width-across :
190mm
Description

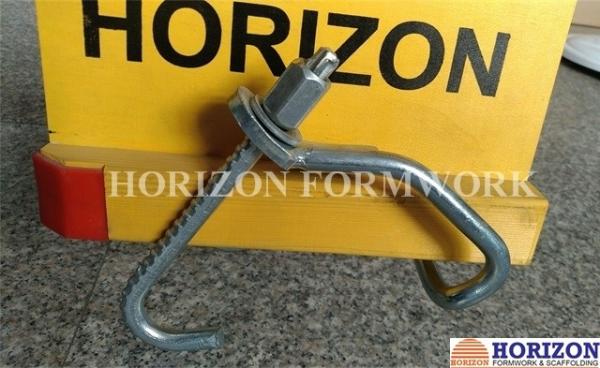

H20 Timber Beam Clamp for Tightening Steel Waler to The H20 Beam

It reliably connects the H20 timber beam to the waler at any required position. The rigid round bar stirrup and the swiveling fingers grasp and tighten the waler flanges to the beam.
Mount the flange clamps with the hexagonal nuts facing downwards (towards the bottom of the formwork). This protects the nuts against soiling during pouring concrete.

Bar Ø (mm)Width (mm)Width-across (mm)Weight (Kg)
121201901.0


Wall Formwork Components:

ComponentsDiagram / photoSpecification / description
Wall formwork panelReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel WalerFor all vertical formworks
H20 Timber beamReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size

Steel walingReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Painted, powder coated
[12 steel channel

Flange clampReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel WalerReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Galvanized
To connect steel waling and H20 beams

Panel strutReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Painted
help formwork panel erection

Waling connector 80Reusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Painted
Used for formwork panels alignment

Corner connector 60x60Reusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Painted
Used for forming inner corner formwork with wedge pins

Top scaffold bracketReusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler

Painted,
severs as safety working platform


Reusable Wall Forming Systems H20 Timber Adjustable Beam Clamp Tightening Steel Waler
Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.
Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
