Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
Specifications
Brand Name :
HORIZON
Model Number :
COLUMN FORMWORKS
Place of Origin :
CHINA
MOQ :
500 sqm
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per week
Delivery Time :
20-25 days
Packaging Details :
pallets, bundles, bulk
Material :
H20 beam, steel waling, plywood
OEM :
Yes
Colour :
yellow & blue
Type :
column formworks
Supporting :
By push-pull brace
Column size :
200 x 500mm and above
Description

Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings

Components Specification / description
Wall formwork panel For all vertical formworks
H20 Timber beam Water proof treated
Height: 200mm
Width: 80mm
Length: as per table size
Steel waling Painted, powder coated
[12 steel channel
Flange clamp Galvanized
To connect steel waling and H20 beams
Panel strut Painted
help formwork panel erection
Waling connector 80 Painted
Used for formwork panels alignment
Corner connector 60x60 Painted
Used for forming inner corner formwork with wedge pins
Top scaffold bracket Painted,
severs as safety working platform

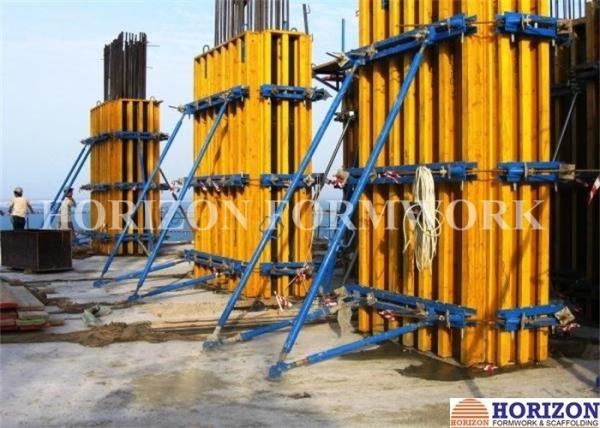

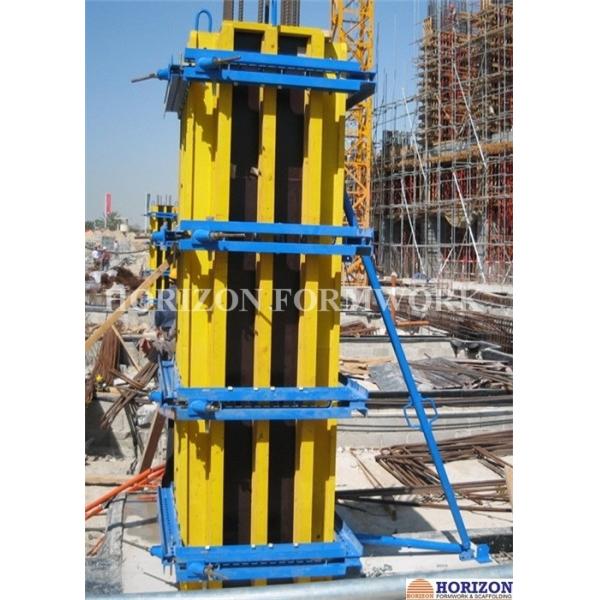

Similar as wall formwork, the column formwork mainly consists of: timber beam H20, steel waling, plywood and beam clamp. There are two options of forming columns: one is by right-angle waling connector & tie yoke system; another is by tie yoke only. Taking examples as following:

Column size: 700 x 700mm
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings

Column size: 1000 x 500mm
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings

Column size: 1000 x 800mm
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings

Column size: 600 x 500mm
Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings

Rectangular Wall Formwork Combined with Wooden Girder H20 and Steel Walings
