Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
Specifications
Brand Name :
HORIZON
Model Number :
Wing nut
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
ductile cast iron
OEM :
Available
finishing :
natrual colour, galvanized
Size :
for tie rod dia 15mm, 20mm, 26.5mm
Application :
to fix formwork panels
Weight :
0.33kg
Samples :
available
Tech. process :
casted
Description

Cast Iron Wing Nut with two lugs for Formwork Tie Rod System
Wing nut is used in conjunction with waler plates for securing tie rods in formwork
applications.
With different waler plates, wing nuts can be used as anchor nuts both for timber and
steel walers. They can be fixed and loosened by using a hexagon wrench or a thread bar. A hammer strike to the wings can also work.

Wing nutBar Ø (mm)Hex. (mm)Height (mm)Weight (kg)
Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems1527550.33
2036600.40
2646650.90
Cast, galvanized; Customized size available.

Part NameSpecification Weight (kg)Remark

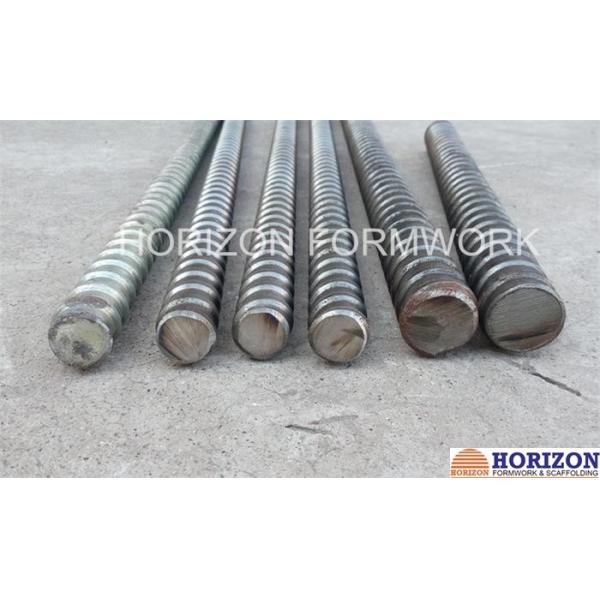

Tie-rod

D15
D20

1.5 kg/m
2.7 kg/m

L=6m;
Special length available upon request.

Super plate

D151.28Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

D15
D20

0.97
0.78

For tie-rod D15;
For tie-rod D20

Waling plate

120 x 120 x 6, Φ19
120 x 120 x 8, Φ19

0.65
0.85

For tie-rod and nut D15;
galvanized

Water stopper

D15
D20

0.55
0.72

Used in water resistant wall;
With tie-rod D15 / D20

Anchor plate

D200.95Embedded in concrete as lost part


Cast Iron Wing Nut with Two Lugs for Formwork Tie Rod Systems
