Formwork Steel Cones Working with Water Stop for Waterproof Walls Construction

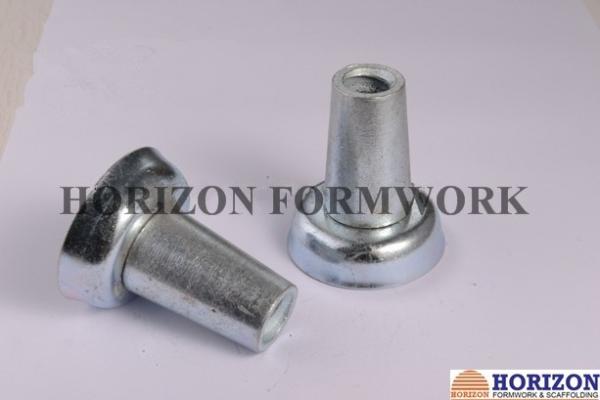

Steel cones are used for applications of watertight concrete walls. The cones are supported at the inside of the formwork and are fastened from the outside using a tie rod and a waler plate, wing nut or equivalent accessories. Size accuracy of the formwork distance is achieved by using a lost tie rod (or with water stop).

The steel cones are loosened by an easily accessible hexagonal head in the cone cover. The matching PE sleeve facilitates the loosening of the cone.

The slim edge cover defines a clear hole that can be easily closed with mortar. However, it leaves a clearly visible indentation in the formwork skin if the outer tie rod is overtightened; the wide edge cover prevents damages to the formwork skin.

The hole that remains after unscrewing must be closed elaborately.

Steel cone	Bar Ø (mm)	Ø1/Ø2/ØD (mm)	Length (mm)	Hex (mm)	Weight (Kg)
	15	27/35/64	75	27	0.34
	15	27/35/74	75	27	0.38
	15	27/42/74	100	27	0.62

Ø1, small cone diameter

Ø2, big cone diameter

ØD, cover diameter

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.

Delivery:
1. Production: For full container, normally we need 20-30 days after receive customer's down payment.
2. Transportation: It depends on the destination charge port.
3. Negotiation is needed for special requirements.

Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.

What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.

Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.

We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.

HORIZON FORMWORK, your reliable formwork partner!
