Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
Specifications
Brand Name :
HORIZON
Model Number :
Flanged Wing nut
Certification :
SGS
Place of Origin :
CHINA
MOQ :
10000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
ductile cast iron
OEM :
Available
finishing :
natrual colour, galvanized
Size :
with plate dia 90mm
Application :
to fix formwork
Weight :
0.5kg, 0.6kg, as per request
Samples :
available
Tech. process :
casted
Description

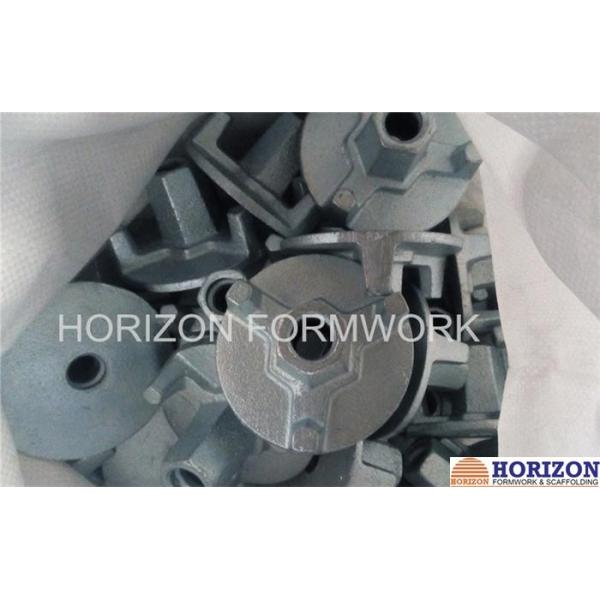

Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System

The Flanged Wing Nut is available in different diameters. With a larger pedestal, it allows a direct load bearing on walings.
It can be screwed on or loosened using a hexagon wrench, thread bar or hammer.

Formwork wing nut with flange:

Flanged Wing nutBar Ø (mm)Plate dia (mm)Height/Hex. (mm)Weight (Kg)
Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System159055/270.50
1510055/270.62
1511055/270.80
2012060/361.00


Part NameSpecification Weight (kg)Remark

Tie-rod

D15
D20

1.5 kg/m
2.7 kg/m

L=6m;
Special length available upon request.

Super plate

D151.28Used in case of tie-rod and formwork panels are not vertical.

3-lug wing nut

D15
D20

0.97
0.78

For tie-rod D15;
For tie-rod D20

Waling plate

120 x 120 x 6, Φ19
120 x 120 x 8, Φ19

0.65
0.85

For tie-rod and nut D15;
galvanized

Water stopper

D15
D20

0.55
0.72

Used in water resistant wall;
With tie-rod D15 / D20

Anchor plate

D200.95Embedded in concrete as lost part


Flanged Wing Nut Ideal for Use with Steel Walings in Wall Formwork System
