Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Flexible Efficient Table Formwork System Shifted Horizontally
Specifications
Brand Name :
HORIZON
Model Number :
Table form
Place of Origin :
China
MOQ :
500 M2
Price :
Pls check with HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
10000 M2 per month
Delivery Time :
20-25 days
Packaging Details :
pallets, bundles, bags, etc.
Certification :
SGS
Material :
Timber beam H20, steel prop, plywood
Application :
Concrete slab construction
Site supervision :
Yes
Feature :
Safety
Description
Flexible Slab Formwork Systems , Efficient Table Formwork System Shifted Horizontally
Flexible and efficient table formwork system for slab concrete construction

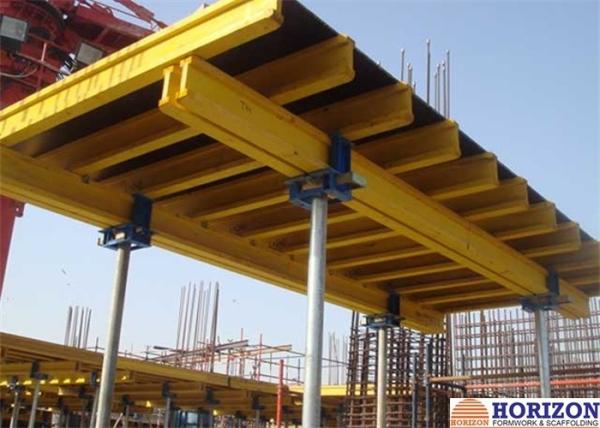

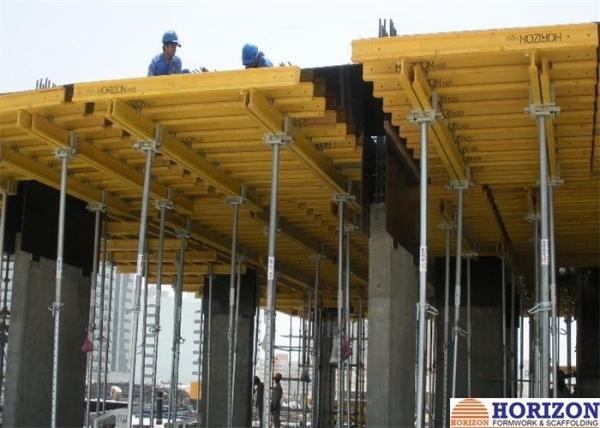

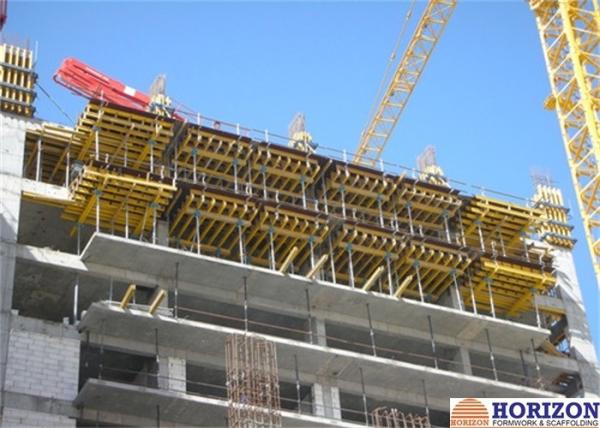

The HORIZON table formwork is designed to be used typically in large area slab concreting for high-rise buildings. The tables can be shifted horizontally and vertically without being dismantled, which provides a cost-effective and efficient solution for the slab concrete work on site.

Advantages:
1. The table formwork is assembled on site and shifted from one area to another without dismantling, thus minumising added risks in erection and dismantling.
2. Very easy assembly, erection and striping, which reduce labor cost.
3. Safety. Handrails are available and assembled in all the perimeter tables, and all these work are done at ground before the tables are put in place.
4. The table height and leveling is quite easy to adjust by means of adjusting props height.
5. The tables are easy to move horizontally and vertically with help of trolley and crane.
6. Can match well with most Euro formwork systems such as Doka, Peri, etc.

Table formwork components:

Components Diagram / photo Specification / description
Timber beam H20 Flexible Efficient Table Formwork System Shifted Horizontally

Water proof treated

Height: 200mm

Width: 80mm

Length: as per table size

4.8kg/m
Table head Flexible Efficient Table Formwork System Shifted Horizontally

Painted

Length: 280mm

Width: 235mm

Height: 300mm

17kg
Floor Props Flexible Efficient Table Formwork System Shifted Horizontally

Galvanized

As per proposal design

HZP 20-300, 14kg

HZP 20-350, 15.8kg

HZP 30-300, 17.6kg

HZP 30-350, 20.3kg
4-way head H20 Flexible Efficient Table Formwork System Shifted Horizontally

Galvanized

Length: 220mm

Width: 145mm

Height: 320mm

2.5kg
Folding tripod Flexible Efficient Table Formwork System Shifted Horizontally

Galvanized

For holding floor props

8.5kg

Flexible Efficient Table Formwork System Shifted Horizontally
