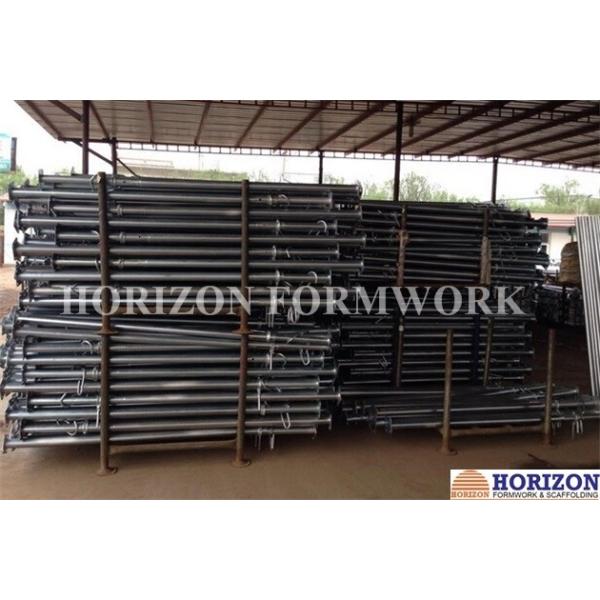

Heavy Duty Adjustable Steel Props With Casted Sleeve Nut, Inner Thread Props

Scaffolding steel props are used to support slab shutterings in buildings construction, with working height range from 1.7m up to 5,50 m.

The inner tube is Ø 48.3 mm (thickness from 2 mm to 4.0mm) with holes to adjust the working height with help of the lock pin.

The outer tube is Ø57 mm (thickness from 1.6 mm to 2.5mm) with reinforcement at foot.

The pin diameter is 14 mm, with a special design that does not allow its fall.

Two end plates, upper and lower plates, serve to give stability to the steel prop.

The adjusting sleeve nut is made from cast iron, with high strength loading capacity.

The thread is covered by a inner threaded nut that has 2 side handles for easy handling.

A steel ring plate is also equipped on the nut that prevents concrete materials falling into the nut and get stuck.

Packing:
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
--- bundles: timber beam, steel props, tie rod, etc.
--- pallet: small parts will be put in bags and then on pallets.
--- wooden cases: it is available on customer's request.
--- bulk: some irregular goods will be loaded in bulk in container.

Who we are:
HORIZON FORMWORK is a professional formwork solution provider for years, supplying: Formwork systems, scaffolding systems and related accessories, which are widely used in commercial, residential and infrastructural projects.
What we offer:
Wall formwork, column formwork, climbing system, table formwork, flexible slab formwork, frame scaffolding system, ringlock scaffolding system, cuplock system, form-tie system, etc.
On-site supervising support is available on request.
Why us:
With 10 years of experience, we know exactly what you need;
Strict quality control in raw material selection, production line, and pre-packing, which ensures the reliable product quality as per customer's request.
Prompt action on customer's requirments.
We are not only providing excellent products, but also offering a comprehensive and complete concrete formwork and scaffolding solution to clients.
HORIZON FORMWORK, your reliable formwork partner!
