Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
Specifications
Brand Name :
HORIZON
Model Number :
Climbing shaft platform
Place of Origin :
CHINA
MOQ :
100 sets
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
100 tons per week
Delivery Time :
20-25 days
Packaging Details :
pallets, bundles, bulk
Material :
steel square tube, panel strut
OEM :
Available
Colour :
painted blue
Shaft width :
Telescopic length
Climbing style :
By crane
Application :
for internal formwork of core wall
Description

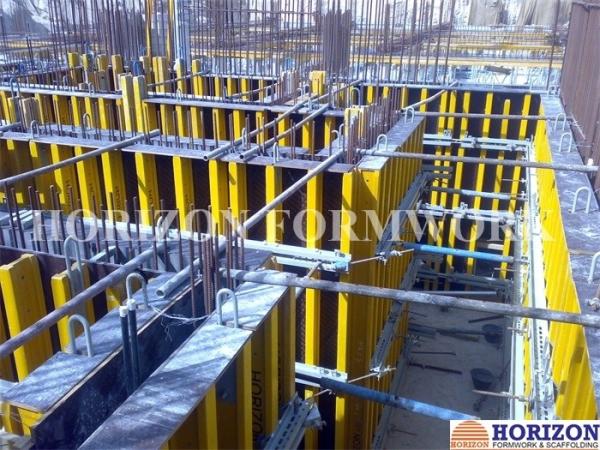

Climbing Shaft Platform in Conjunction with Push-pull Brace to Support Wall Form

Climbing shaft platform is the simple solution for supporting shaft internal formwork in stairwells and elevator shafts.

It consists of telescopic platform beams that are tailored to match the respective shaft dimensions.

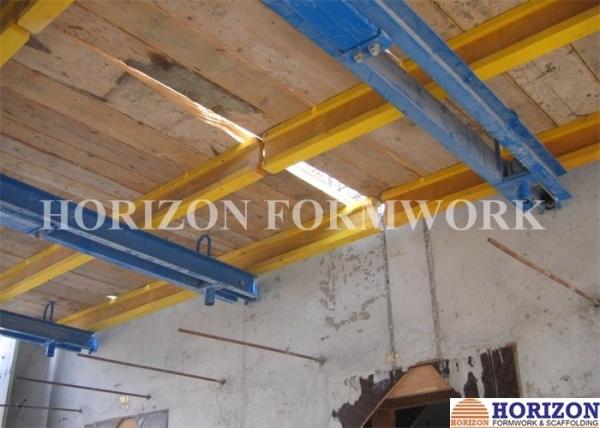

The decking is supported by H20 timber beams which are fastened to the platform beams.

Two support possibilities

1). Shaft platform with climbing cone

In case it is not allowed to leave a hole in the wall, the support of the shaft platform can be provided on climbing cone. For the safety, the shaft platform is combined with a finishing platform on which workers can remove the lower climbing cones and do some cleaning.

2). Shaft platform with gravity pawl

When a hole is allowed to leave in the wall, this system is the economical option to choose. When lifting the shaft platform to next floor, the gravity pawl will drop automatically into the holes provided for them in the wall. For this option, the finishing platform is avoidable, which saves time, cost and seems to be simple.

Push Pull Brace Climbing Scaffolding System Tailored Beams To Support Wall Form
