Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
Specifications
Brand Name :
HORIZON
Model Number :
steel prop 3.5m
Certification :
SGS
Place of Origin :
CHINA
MOQ :
2000 pcs
Price :
pls ask HORIZON
Payment Terms :
L/C, T/T
Supply Ability :
20000 pcs per week
Delivery Time :
15-25 days
Packaging Details :
pallets, bundles, bulk
Material :
Q235 steel pipe
OEM :
Available
finishing :
painting, zinc-plateH, HDG, powder coated
Application :
for salb formwork and post shoring
Color :
Silver,blue,red,Customer Requirements,yellow
Type :
Heavy Duty,Adjustable props,Scaffolding Prop,floor prop
Product name :
1.6-4.0M Steel Adjustable Props,scaffolding props,Heavy duty adjustable shoring scaffolding steel prop
Thickness :
1.5mm-4mm
Size :
2.0-3.5m or OEM
Outer tube diameter :
48/56/60mm,or as customer's request
Packing :
in bundle
Inner tube diameter :
40mm / 48mm / 56mm,or as customer's request
Description

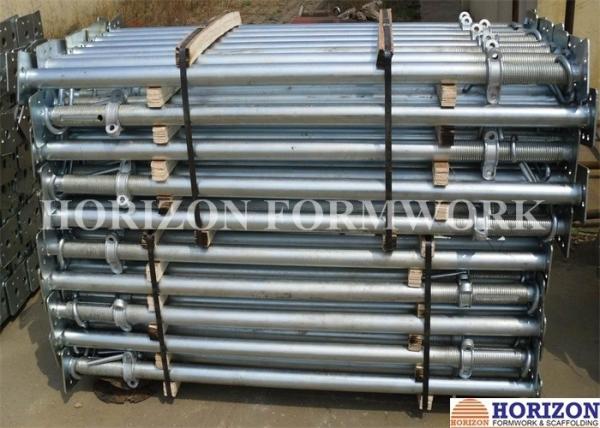

Adjustable Steel Props For Slab Formwork Support And Post Shoring

With high efficiency and easy operation, steel props are designed for the shoring of horizontal form work as well as for post shoring the new poured slab until it reachs required strengh.

Various sizes of props are available:

Height Range

Outer tube(mm)

Inner tube (mm)

Thickness (mm)

 Adjusting device
1.7m-3.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.0m-3.6m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.2m-4.0m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
2.5m-4.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread
3.0m-5.5m 60 / 57 / 48 48 / 40 1.6-4.0 Ext. thread / Int. thread


Advantages:
1. High quality steel tubes ensures its high loading capacity.
2. Various finishing are available, such as: hot-dipped galvanization, electric-galvanization, powder coating and painting.
3. Special design of minimum 10cm space prevents the operator from hurting his hands between the inner and outer tube.
4. The inner tube, pin and adjustable nut are designed protected against unintentional disengagement.
5. With the same size of the base plates, the prop heads (fork heads) are easily to insert in the inner tube and outer tube.

Adjustable Scaffolding Steel Prop For Slab Formwork Support And Post Shoring
