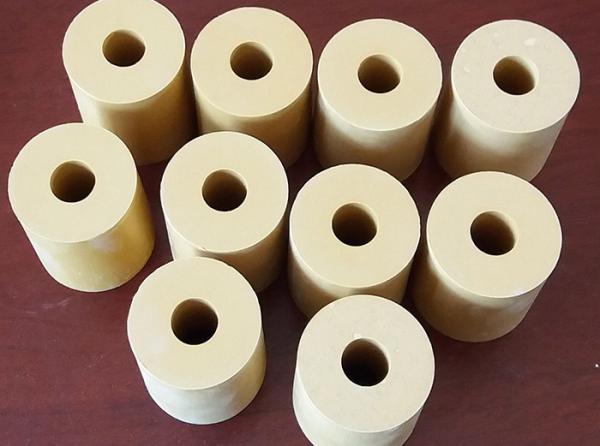

95-96% ZrO2 Lower Nozzle For Continuous Casting Machine
95-96% ZrO2 Lower Nozzle For Continuous Casting Machine
Specifications
Brand Name :
FunMeet
Model Number :
FMXC-ZN-007
Certification :
ISO9001:2015、ISO14001:2015、OHSAS18001:2007、ISO 50001:2011,etc.
Place of Origin :
Zhengzhou, China
MOQ :
500pcs
Price :
negotiation by the drawing and quantity
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
50000pcs per month
Delivery Time :
25-30days after the order confirmed
Packaging Details :
fumigation wooden box with inner carton and protecting foam wrapped
Name :
Lower Nozzle
ZrO2+HfO2 :
95-96%
MgO :
2.7-2.9%
A. P. :
5-7%
B. D. :
not less than 5.1g/cm3
Applcation :
Continuous Casting Machine
Feature :
Smelting High Grade Special Steel type
Description

95-96% ZrO2 Lower Nozzle For Continuous Casting Machine

Production Process

Our low density of the zirconia nozzle insert as flow control refractory is made of the high quality of e-fuzed magnesia and zirconia grain and sand, bonding agent, through the the automatic system mixing, drying, pressing, inspecting, sintering, etc. series system process, then pack into the carton, and wooden box with the desired shipping mark sticked, then deliver to the china mainland and oversea from our factory.

Inspection times in production process

1. After Mixing, inspect the water content of material,

2. After pressing, inspect the size,missing angle, etc. of semi-finished products

3. After sintering, inspect the size, missing angle, cave, etc. of finished products

4. Before packing, inspect the size, missing angle, cave,of the finished prodcuts again.

Chemical Composition and Physical Propeties

Model Chemical Composition Physical Properties

ZrO2

(%)

Al2O3

(%)

SiO2

(%)

MgO

(%)

Bulk Density

(g/cm3)

 Apparent Porosity (%)
FMXC-ZN-007 95-96 ---- ---- 2.7-2.9 5.1-5.15

5-7

Size Tolerance:

Middle Hole Diamter:+-0.2mm, other sizes: +-1mm.

Exported Countries

India, Pakistan, Iran, Thailand, Turkey, Peru, USA, etc.

Fangming NewM's Goal

Large size, super special shaped super high temp. zirconia ceramics, we will offer the comprehensive and integrated super high temperature, strong crushing resistance, strong erosion resistance application condition solutions.

Example for actual working conditions


95-96% ZrO2 Lower Nozzle For Continuous Casting Machine
95-96% ZrO2 Lower Nozzle For Continuous Casting Machine
