One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
One Body Type Tundish Nozzle With Zirconia Insert Alumina Body Scouring Resistance
Specifications
Brand Name :
FUNMEET
Model Number :
FMXC-CZN-PMO1-004
Certification :
ISO9001:2015、ISO14001:2015、OHSAS18001:2007、ISO 50001:2011,etc.
Place of Origin :
Zhengzhou, China
MOQ :
100pcs
Price :
negotiated based on the drawing and quantity
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20000pcs per month
Delivery Time :
25-30days after the deposit received
Packaging Details :
wooden box with the inner carton and protecting material wrapped around.
Name :
one body of the tundish nozzle
Insert :
95% ZrO2+5.4g/cm3 density
Body :
75%Al2O3+2.5g/cm3 density
Features :
Embedded Zirconia Insert, Increase the working life of the nozzles
Application :
Taphole of Tundish Furnace
Usual Size :
125-125*12*20MM
Description

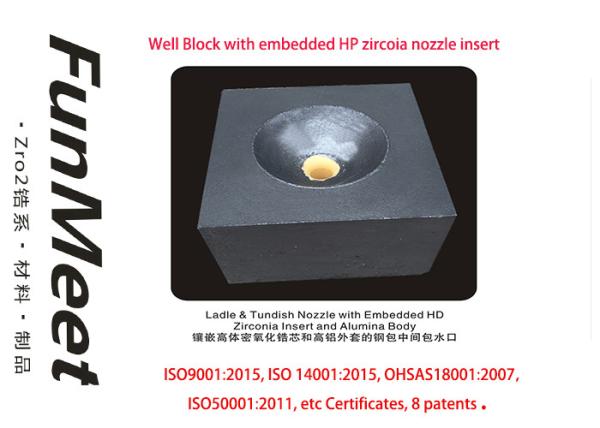

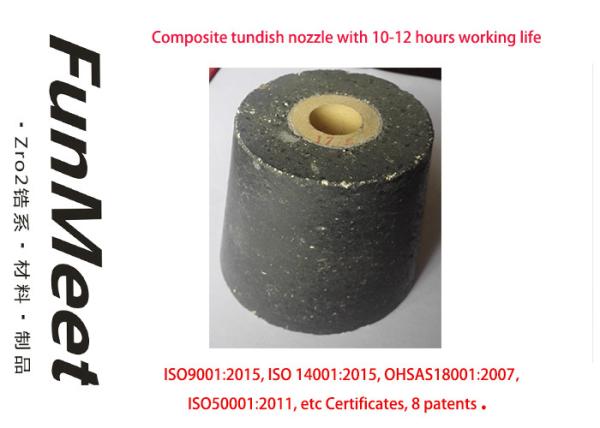

HP one body of the tundish nozzle with zirconia insert and alumina body-Fangming ceramics

Working conditions:

Matched with the zirconia nozzle insert, with the alumina, alumina carbon, magnesia-spinel, magnesia-alumina-carbon quality, body, using the refractory mortar bonding together, to used in the taohole slag stopping system of the tundish and get the excellent working effects in China and oversea steel smelting market.

Product's Features:

Our embedded zirconia nozzle insert have the excellent erosion and scouring resistance to the steel liquid and slag, and have the excellent thermal shock stability, can work in the preheating and cold states normal working.

From our more than 5 years' mass using in the main steel plants in China Mainland and abroad, such as Baowu Steel, MaSteel, Tansteel, Hansteel etc.national large and medium types of the steel plant, and the smelting steel type is the normal constructural steel type, and other special steel type.

Production Process

Our zirconia tundish nozzle Insert is made of the high purity of e-fuzed zirconia grain and powder, stabilizer, bonding agent, through the world advanced full automatic system fully mixing, drying, inspecting, pressing, inspecting, sintering, Inspecting,Polishing Inspecting, etc. series complex process, then packed into the fumigation wooden box with the client's information printed well, deliver to the china mainland and oversea from our factory.

Chemical and Physical Properties

Model Chemical Composition Physical Properties

ZrO2+HfO2

(%)

Al2O3

(%)

SiO2

(%)

MgO

(%)

Bulk Density

(g/cm3)

 Apparent Porosity (%)
FMXC-CZN-PMO1-004 ≥95 --- ---- 2.7-2.9 5.40-5.45 ≤9.0


Usually Size we supplied:


125*125*12-20mm middle hole diameter.
