450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
HRF
Price :
$50,000.00/sets 1-1 sets
Cutting Width (mm) :
500 - 1300
Material Thickness(mm) :
0.4 - 3
Cutting Speed(m/min) :
1 - 110
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Coil Weight (T) :
25
Leveling Precision(±mm/m) :
0.5 ±mm/m
Condition :
New
Voltage :
450v
Rated Power :
300kw
Dimension(L*W*H) :
28mx8mx2m
Weight :
50000
Year :
2021
Key Selling Points :
Low Noise Level
Warranty :
1 Year
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location :
Egypt, Turkey, Italy, Germany, Saudi Arabia, India, Spain, Kenya, South Korea, Bangladesh, South Africa, Kazakhstan, Japan
keywords :
cut to length line machine
Product name :
used cut to length line for sale
Coil thickness :
0.4-3mm
Control system :
Automatic
Material of coils :
galvanized steel,hot rolled ,cold rolled steel
Motor Power :
400Kw
Decoiler Type :
Hydraulic
Color :
Requirement
name :
used cut to length line for sale
After-sales Service Provided :
Field installation, commissioning and training
Description
Company Profile
450v Automatic Cut To Length Machine Tinplate Line
450v Automatic Cut To Length Machine Tinplate Line
Products Description

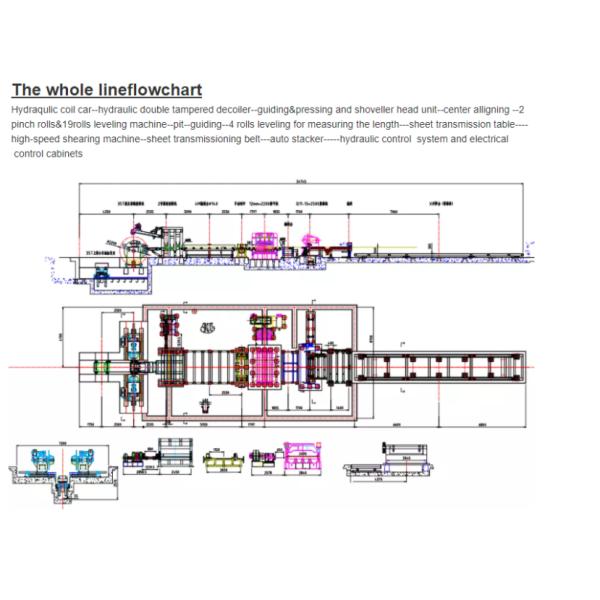

1,What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well 2,Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3,Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..
Product Paramenters
item
specifications
Raw materials
Materials feature
Stainless steel
thickness
0.5mm—4.0mm
Aluminum feature
Tensile grade σb≤450MP Yield grade σs≤260MP
width
300mm—1600mm
O.D
Φ800mm—φ2000mm
I.D
φ508mm—φ610mm
Coil weight
Max 25T
Finished product
Flatness without any increased processment faults
Cutting length
300mm—4000mm
Leveling precision
less than 25% raw materials non-flatness(1.5-2mm/㎡)
Cutting tolerance:
±0.5mm/1000mm( length tolerance)
±0.60mm/1000mm( diagonal tolerance)
Match the standard GB/T709-88
Strip threading speed
10m/min
Line speed
10-80m/min
Cutting speed
0-25 pcs/ according to the length 2000mm
Total line power consumption
About 125kw
Center line of the line ( to the ground)
+1000mm
Space of the whole line
28mx9m
Line direction
Left input to right output
