Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5
Specifications
Brand Name :
ANWELL
Model Number :
AN-PX2.0/2.5/3.0/4.0/5.0
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
7 business days
Packaging Details :
Wooden case and flight case package
Application :
Shopping Mall, Concerts, Shows and Event, Airport
Display Type :
LED Video Display
LED Type: :
NATIONSTAR SMD2121
Module size :
192*192mm
Pixel Density: :
111111 pixels/1SQM
Brightness: :
≥1100MCD/m2
Cabinet Size :
576X576mm
Best Viewing Angle :
120(W), 120(H)
Viewing Angle :
H:160degree V:160degree
Drive IC :
Mbi5124
Pixel Resolution: :
128x64 Dots
Cabinet Material :
Steel Iron/Aluminum
HS Code :
8528591090
Brand :
ANWELL
Description

P2 P2.5 P3 P4 P5 Indoor Led Module Led Video Wall Display Module P4 LED Video Wall

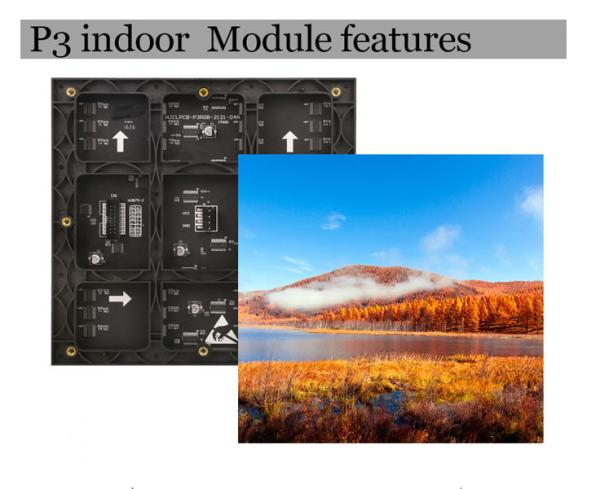

Product Features

1. Quick maintenance during events.

2. Positive+Negative magnetics to avoid module move during transportation.

3. Auto-calibration: avoid complicated calibration work, no need debugging after changing led modules.

4. Easy and quick assembly: fast assembly and dismantle design to save labor force and time.

5. High polymer flexible mask, no mosaic phenomenon ,better contract ratio.

Product Lines
1, Indoor SMD led module: P1.667,P1.923,P2,P2.5, P3,P3.91, P4,P4.81,P5,P6,P7.62,P10
2, Outdoor SMD led module: P3,P3.91,P4, P4.81,P5,P5.95,P6,P6.67,P8,P10,P16
3, Outdoor DIP led module,with high brightness and waterproof: P8,P10,P12,P16,P20
4, Outdoor DIP 3in1: P6.67,P8,P10,P13.33
5, Indoor and outdoor single color and dual color led module

Technical Specification:

LED Configuration
SMD1515
SMD2121
SMD2121
Pixel Pitch(mm)
2
2.5
3
Module Resolution(W*H)
160*80
128*64
64*64
Module Dimension(mm)
320(W)*160(H)*15(D)
320(W)*160(H)*15(D)
192(W)*192(H)*15(D)
Module weight(kg)
0.85
0.85
0.3
Module Max Power Consumption(W)
≦15
≦15
≦15
Single Dot Brightness Correction
YES
YES
YES
Single Dot Chroma Correction
YES
YES
YES
White Balance Brightness(nits)
≥850-1100
≥850-1100
≥850-1100
Color Temperature(K)
2000-9300 Adjustable
2000-9300 Adjustable
2000-9300 Adjustable
View Angle(H/V°)
140/120
140/120
140/120
Brightness/Color Uniformity
≥97%
≥97%
≥97%
Power Supply
AC90~264V,Frequency 47-63(Hz)
AC90~264V,Frequency 47-63(Hz)
AC90~264V,Frequency 47-63(Hz)
Refresh Frequency(Hz)
50&60
50&60
50&60
Drive Mode
Constant Current Drive,32 Scan
Constant Current Drive,32 Scan
Constant Current Drive,32 Scan
Gray Level
16384
16384
16384
Refresh rate(Hz)
≥1920
≥1920
≥1920
Color Processing Digit
16bit
16bit
16bit
Module power-off storage function
YES
YES
YES
Functions
2K HD,4K Ultra HD Videos
2K HD,4K Ultra HD Videos
2K HD,4K Ultra HD Videos
Lifespan(hrs)
100,000H
100,000H
100,000H
Operating Temperature/Humidity(℃/RH)
'+-10 – 40 / 10%-80%RH
'+-10 – 40 / 10%-80%RH
'+-10 – 40 / 10%-80%RH

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.

Indoor and outdoor LED rental display proejcts

Mbi5124 Drive IC Indoor LED Screen Module P2 P2.5 P3 P4 P5

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
