Specifications
Brand Name :
ANWELL
Model Number :
AN-46/49/55TH-series
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
5 business days
Packaging Details :
Wooden case and flight case package
Product Name :
Zero bezel 55 inch Video Wall Screen
Panel Brand: :
LG A+ Original Panel
Splicing seam: :
0.88mm
Specification :
1213.40*680.7MM
Resolution: :
1920x1080P 4K 3840*2160P
Viewing Angle :
H 178° | V 178°
Input Interface: :
HDMI*1/VGA*1/DVI*1/BNC*1/USB*1
Input Voltage: :
100V-240VAC,50/60Hz
Display Color: :
16.7M
Application: :
Indoor, Advertising/CCTV Monitoring
Pixel Pitch: :
0.264(H)mm x 0.264(V)mm
Control: :
RJ45 RS232
Installation: :
Wall mount/Floor Standing
Delivery time :
5 business days
Description

55inch LG 0.8mm LCD Video Wall Display Zero Bezel Advertising Touch LCD Video Wall Display

1.A+Grade factory original LCD industrial panel , supports 24 hours continuously playing

2.500cd/m2, 700cd/m2 optional,3.5mm bezel or 1.8mm bezel optional

3.Easy installation, only fix them together by metal bracket

4.Free software ,easy to operating, can operate system together with software flexible

5. 1 Year warranty, if broken, free product for replacement.

6.Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232

7 High quality monitor screen ,good technical support for using, installment and after-sale support

8. Support error and compensation function of video wall pictures

9. Modular design according to customer demand (M * N)

10. Diversification of the display mode

Application:
The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public

Supply Ability

Supply Ability: 1100+pieces/pcs per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Technical Specification:

Screen Size 55inch
Aspect Ratio 16: 9
Visible Size 1209.6mm (H)*680.4mm(V)
Panel TFT LED
Max resolution 1920*1080
Display Color 16.7M
Pixel Pitch (mm) 0.630 (H)*0.630(V)
Brightness 500cd/m2
Contrast 3500: 1
Viewing Angle H/V) 178°(H)/178°(V)
Response Time 5ms
Seam ≤1.7mm
Lamp Life > 50000 Hours
Composite Video Input 1CH (2xBNC)
DVI Input 1CH DVI
D-sub PC Input 1CH D-sub VGA
HDMI Input 1CH HDMI
USB input 1ch
RS232 Signal Control 1CH Input (RJ45), 2CH loop out (RJ45)
Color System PAL/NTSC
Compatible HD/SD and HDMI Input 400i/P, 576i/P, 720P, 1080i/1080P
3D Comb Filter Support
MPEG Noise Reduction Support
Splicing Multi-Screen
Splicing Function Windowing, Screen Crossing, Roaming
Matrix Joint Control Support
AUTO Reproduction Ratio Support
(PIP/POP) Support
Remote Controller Optional
Intelligent Temperature Control Support
Power Supply AC 100~240V, 50/60Hz
Watt <200W
Dimension 1211.54mm*682.34mm*38.7mm

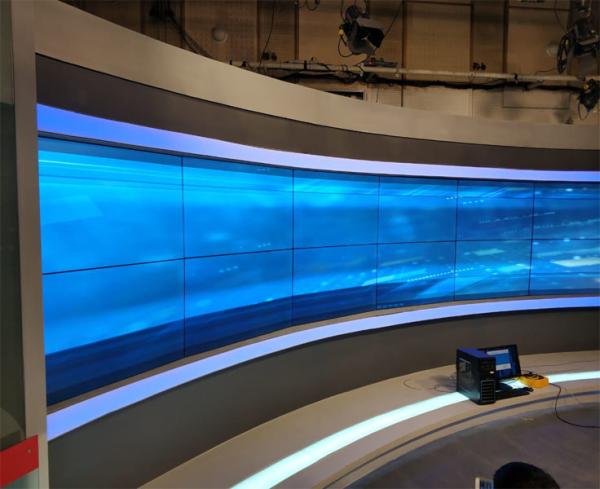

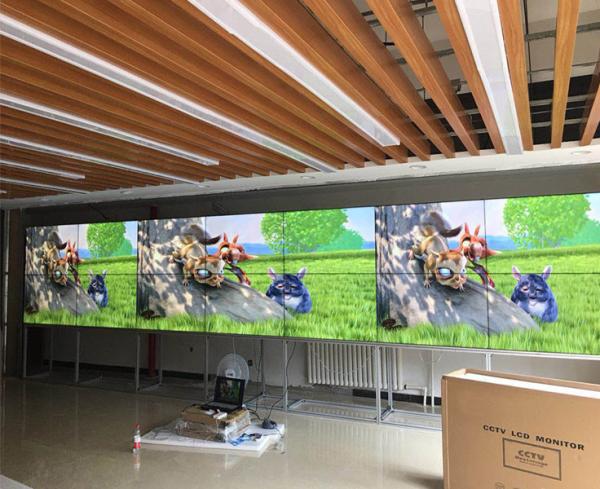

Video wall display proejcts

55Inch Zero Bezel Seamless HD LCD Video Wall Display For Mall TV Station

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

SHENZHEN ANWELL INDUSTRY CO.,LIMITED guarantees the above mentioned products as follows:


LCD panel and Parts: For a period of two (2) years from the date of cargo delivery. Any defective parts includes LCD panel and accessories will be, at this manufacturer's option, replaced or repaired at no cost to the buyer. This products shall be notified in writing, of any defects prior to two (2) years from the date of cargo delivery, at which time the warranty expires.

Free LCD monitor parts and charged LCD panel within warranty period.


The above warranty does not cover additional owner instruction, set-up or adjustment. Likewise, this warranty does cover normal wear and tear, cosmetic damage or damage caused by acts of nature, accidents, negligence, misuse, abuse or lack of routine maintenance, or modification to any part of the system, by anyone other than SHENZHEN ANWELL INDUSTRY CO.,LIMITED.
