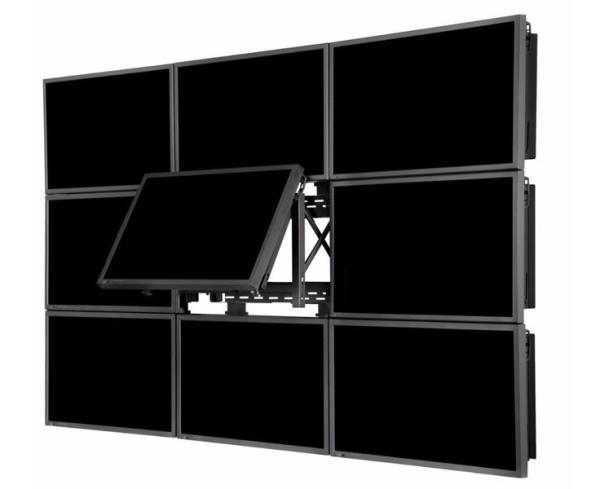

DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket
Specifications
Brand Name :
ANWELL
Model Number :
AN-46/49/55/65TH-series
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
5 business days
Packaging Details :
Wooden case and flight case package
Product Name :
46 49 55inch LCD video wall screen
Brightness: :
500CD/M2
Input Voltage: :
AC100~240V 50/60Hz
Ultra-narrow border: :
0.88/1.8/3.5/5.5mm (Option)
Screen Type :
100% original new SAMSUNG DID LCD panel
Viewing Angle :
H 178° | V 178°
Contrast Ratio: :
5000:1
Display Color: :
16.7M
Applicant: :
Vide meeting security system trade fair surveillance center
Response Time: :
8ms
Control: :
RJ45 RS232
Delivery time :
4 business days
After-sales :
Service Provided: Video technical support, Free spare parts, Field installation
Description

55inch Hot Sale Frameless Lcd Monitor Video Wall Indoor Touch Lcd Display Screen With Video Wall

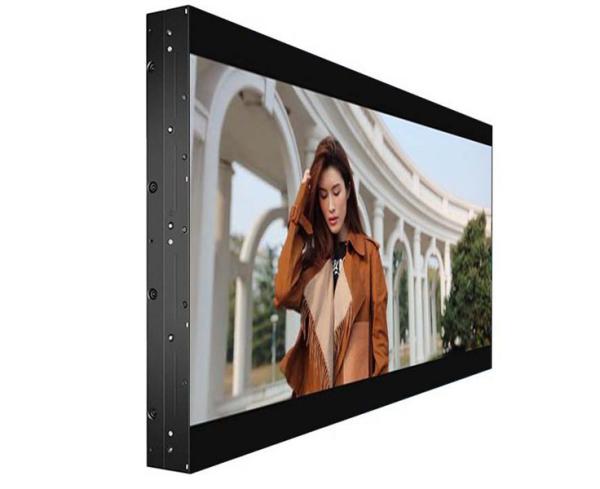

Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.

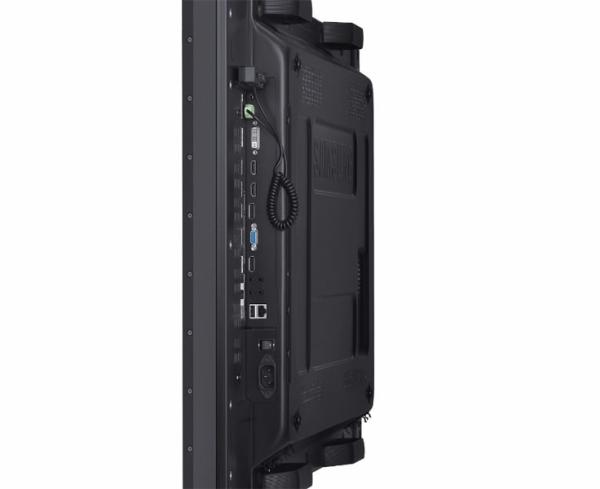

Signal interface rich --- RS232, HDMI,DVI,VGA,DP-loop out(daisy chain)
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time

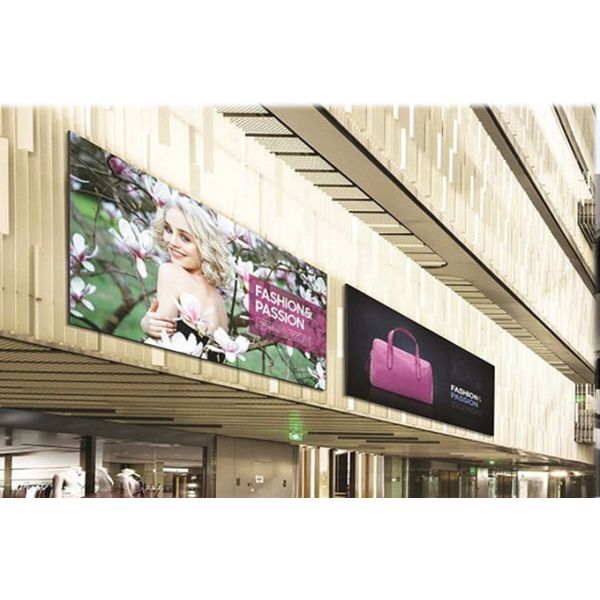

Application:

The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public

Technical Specification:

Model No.
 AN-55TH02E/TH03E
Panel Size 55" 1.7mm 3.5mm with Samsung LG DID LCD Screen
Max resolution 1920X1080/3840X2160(2K/4K for optional)
Screen Size (inch/cm) 55 /138.8
Active Screen Area (W x H)(mm) 1,210 x 680
Panel Technology S-PVA TFT with direct white LED backlights
Aspect Ratio 16:9
Color 8Bit,16.7M
Visual Angle (H/V) 178/178
Response Time <=6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
H D M I 1
D15-RGB Input(VGA) 1
RJ45 4
DP 2(2xDP)
Composit video input 2(2xBNC)
Split screen Support picture in picture(PIP/POP/PAP)
Power
Power supply AC100V~240V
Maximum power consumption 130W
Standby comsuption <=3W
Temperature
Working temperature 0ºC~60ºC
Working Humidity 20%~80%
Dimension 121.5x68.6cm
Weight 20kg
Video Wall Controller(Built-in each Screen)
Model No. UD-PJ
Input CVBS 1*BNC port, support PAL/NTSC all formats
DVI 1*DVI-I port, support SVGA/XGA/WUXGA
VGA 1*D15 port, support SVGA/XGA/WXGA
HDMI 5*BNC ports, support SVGA/XGA/WUXGA
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
CVBS support PAL/NTSC all formats
DVI 1*DVI-I port, support SVGA/XGA/WUXG

Supply Ability
Supply Ability: 1100+pieces/pcs per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Video wall display proejcts

DID 4K 55 Inch 2x2 3x3 HD Seamless Lcd Video Wall With Wall Mount Bracket

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

SHENZHEN ANWELL INDUSTRY CO.,LIMITED guarantees the above mentioned products as follows:


LCD panel and Parts: For a period of two (2) years from the date of cargo delivery. Any defective parts includes LCD panel and accessories will be, at this manufacturer's option, replaced or repaired at no cost to the buyer. This products shall be notified in writing, of any defects prior to two (2) years from the date of cargo delivery, at which time the warranty expires.

Free LCD monitor parts and charged LCD panel within warranty period.


The above warranty does not cover additional owner instruction, set-up or adjustment. Likewise, this warranty does cover normal wear and tear, cosmetic damage or damage caused by acts of nature, accidents, negligence, misuse, abuse or lack of routine maintenance, or modification to any part of the system, by anyone other than SHENZHEN ANWELL INDUSTRY CO.,LIMITED.
