Specifications
Brand Name :
ANWELL
Model Number :
AN-PX6/X8/X10
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Delivery Time :
15 business days
Packaging Details :
Wooden case and flight case package
Product name :
90 Degree Corner P6 Outdoor Advertising Screen
Panel Size: :
192x192mm
Pixel Pitch: :
6mm
Brightness :
> 6500nits
Module resolution: :
32*32dots
Display function: :
Video text
Light source: :
Waterproof LED Modules
Size: :
Customized Led Sign
IP Protetion Level: :
IP65
Chip: :
Epistar
Brand name :
ANWELL
Shape: :
Customized Shape
Warranty: :
2years
Description

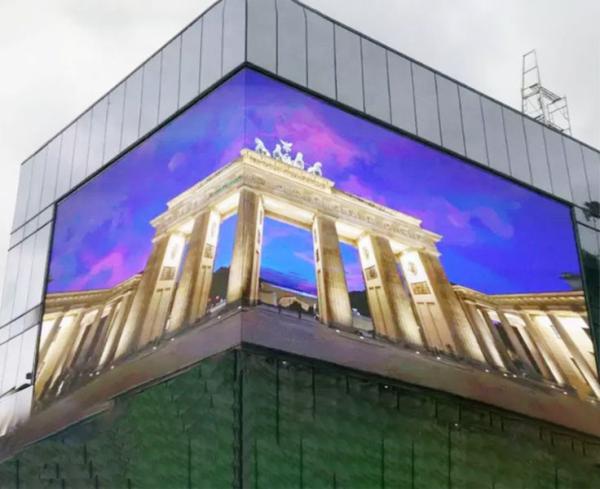

High quality P10 P8 P6 P5 Indoor Outdoor Seamless L Shape 90 degree Corner LED Display Screen

1.Be rich in content :it can display text ,graphics,images,animation,video information.

2.Effect is good:adopting dynamic scanning technology,the picture is stable and free of clutter ,the image is clear and vivid and the video screen is smooth and lifelike.

3.Quality guarantee:adopt imported luminescent materials,high quality IC chip,noise-free power supply,tensile and anti-seismic,up to 10 years of life.

4.Good visibility:both horizontal and vertical have large visual angles,which are suitable for environments with wide horizontal distribution and large height drop.

5.Flexible:display mode can be programmed by the user at will.The information displayed is unrestricted.

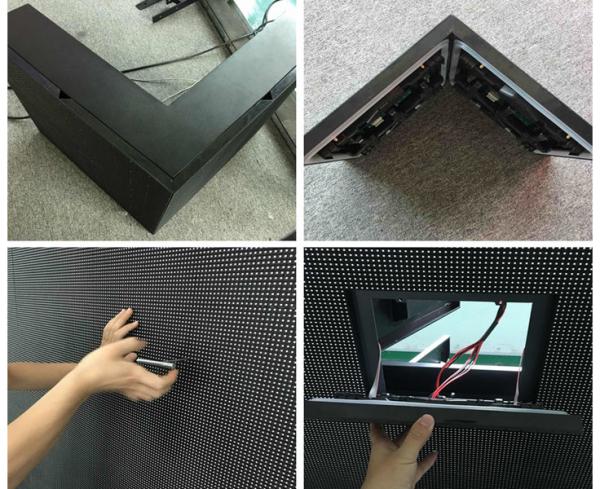

6.Easy maintenance:modular design,easy installation and maintenance.

Application:

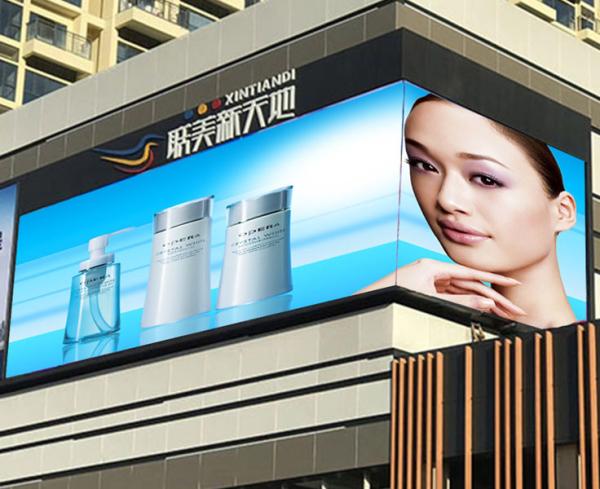

Widely used in outdoor advertising, toll gate, supermarket, shopping mall, sport game etc.

Technical Specification:

Type SMD3535
Composition 1R1G1B
Scan method 8S
Resolution 32 x 32dots (W x H)
Pixel pitch 6mm
Module size 192*192 mm
Module quantity 4x6
Resolution 128x 128(W x H)
Cabinet size 768*768mm or customized
Panel Type and Material Iron box
Best viewing distance 6-80m
Maximum power <1200W /m2
Viewing angle 140°/140°
Brightness 6500cd/m2
Pixel density 27777dot/m2
Control system Synchronous System
Lifespan 100,000 hours
Frame frequency 60Hz
Installation Hanging/Fixed with support bracket
Certification CE, ROSH, FCC


Supply Ability

Supply Ability: 1100+pieces/pcs per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Outdoor LED screen display proejcts

Customized Weatherproof 1920Hz Outdoor Full Color Advertising LED Display Screen

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
