Specifications
Brand Name :
ANWELL
Model Number :
AN-PX-4.0
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
1SQM
Price :
US$ 700-US$1100 / 1SQM
Payment Terms :
L/C, T/T, D/P
Delivery Time :
7 business days
Packaging Details :
Flight case package
Application: :
outdoor
Color: :
FULL COLOR
Panel Size: :
960x960mm
Pixel Pitch: :
P4 / P5 / P6 / P8 / P10
Place of Origin: :
Guangdong, China
Model Number: :
Outdoor P4/P5/P6/P8/P10 LED display
Brand Name: :
ANWELL
Brightness: :
1200-6000cd/sqm
Refresh Rate: :
>3840Hz
Display Function: :
Video
delivery time: :
7 to 20 days
LED Configuration: :
SMD 3-in-1
Ave./Max. :
Power/sqm (watts): 195/350
Viewing Angle: :
Horizontal 160 deg. Vertical 140 deg.
Grey scale: :
16 bit
Description

P4 P5 Digital Billboards Outdoor Screens Full Color Led Advertising Display Billboard

Product Features

Description:
Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric
Outstanding consistency in color and brightness, no mosaic effects.
High viewing angle: 140°(Horizontal )/140°(Vertical )
High Contrast
The Contrast is above 2000:1, so the viewer can have a wonderful visual

Applications:

1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.

Supply Ability

Supply Ability:1400 Square Meter/Square Meters per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Technical Specification:

Para Name
Parameter
Module No
AN-PX4-LED
AN-PX5-LED
AN-PX6-LED
AN-PX8-LED
AN-PX10-LED
Pixel pitch
4mm
5mm
6mm
8mm
10mm
Module size
256 x 128mm
320x 160mm
192 x 192mm
256mm x 128mm
320 x 160mm
Module resolution
64 x 64
64 x 32
32 x 32
32 x 16
32 x 16
Pixel density
62,500pixels/㎡
40,000pixels/㎡
27,777pixels/㎡
15,625 pixels/㎡
10,000 pixels/㎡
LED package
SMD
SMD
SMD
SMD
SMD
cabinet size
1024x 1024mm or Custom size
960 x 960mm
960 x 960mm
1,024 x 1,024mm
1280 x 1280mm
or Custom size or Custom size or Custom size or Custom size
cabinet resolution
128 x 128
128 x 128
128 x 128
128 x 128
128 x 128
Brightness
5,000nits
5,500nits
6,000nits
6,500nits
7,000nits
Scan mode
1/8 Scaning
1/8 Scaning
1/8 Scaning
1/4 Scaning
1/2 Scaning
Refresh rate
≥ 1,920hz
Power consumption
Max: 980 W/㎡; Average: 380 W/㎡
working temprature
-20℃~60℃
Working Humidity
10~99%
Best view distance
≥4m
≥5m
≥6m
≥8m
≥10m
Viewing Angle
Horizontal 140°(+70/-70) , Vertical 120°(+60/-60)
Ingress Protection
Front IP65, Back IP54

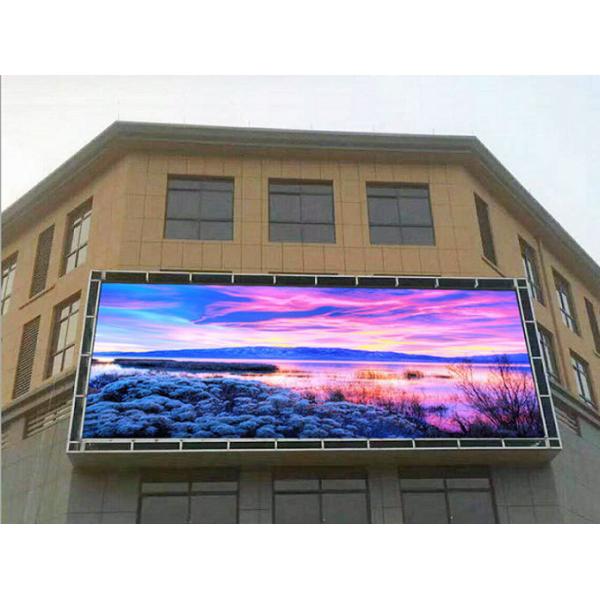

Outdoor LED display proejcts

Waterproof Outdoor 3840Hz 5500 nits Outdoor Video Walls

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
