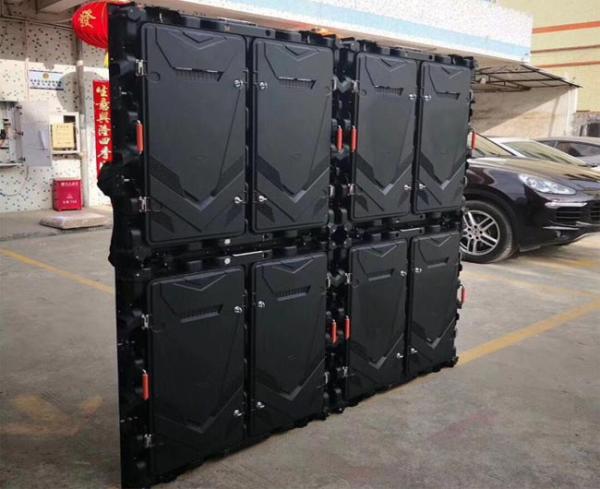

High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen
Specifications
Brand Name :
ANWELL
Model Number :
AN-PX-3.0
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, Western Union
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
7 business days
Packaging Details :
Wooden case and flight case package
Application: :
Outdoor, Outdoor Advertising Led Screen Color:
LED chip: :
Cree + Nichia + Epistar + Opto + Silan
Pixel Pitch: :
3mm
Panel Size: :
192*192MM
Viewing angle: :
140 /140
Power Supply: :
Meanwell
Life span :
100,000 Hours
Cabinet size :
576*576MM/768*768MM/960/960MM
Refresh rate: :
1920Hz-3840Hz
Warranty :
3.0mm/4mm/5mm/6mm/8mm/10mm
Function: :
Play Video
Pixel configuration: :
SMD 3IN1
Brightness: :
5500cd/sqm
Cabinet Weight (Kg): :
8.5 KG
Description

P3 Outdoor LED Display Screens Advertising LED Display Screen Outdoor led screen

Product Features

1. Original EPISTAR SMD LED lamp used in outdoor LED screen product lines.

2. SMD black lamp

3. With pure golden wire connection in LED.

4. All new stainless steel screws when assembly.

5. 2 years warranty.

6. High refresh rate, >=3840HZ. Which let the picture is vivider.

Supply Ability

Supply Ability:1400 Square Meter/Square Meters per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Technical Specification:

Market Character
P3
P4
P5
Pixel Pitch
3mm
4mm
5mm
Module size
192*192mm
256*128mm
320*160mm
Pixel Density
111111dot/sqm
62500dot/sqm
40000dot/sqm
Pixel configuration
SMD2121
SMD1921
SMD3535
Brightness
above 5500cd
above 5500cd
above5000cd
Drive method
1/8 scan
1/8 scan
1/4 scan
Viewing distance
10-100meters
15-150meters
20-200meters
Max Power consumption
1200w/sqm
1200w/sqm
1200w/sqm
Average power consumption
400w/sqm
400w/sqm
400w/sqm
Drive IC
IC2153 which can bring over 3840hz of refresh rate
Refresh rate
over 3840hz
over 3840hz
over 3840hz
Protection Level
IP65
Viewing Angle
H:120° w:120°
Operating Temperature
'-20~60°
Contrast
5000:1
Life Time
Above 100000hours


Outdoor LED display proejcts

High Refresh Outdoor LED Digital Display LED Window Display P3 LED Screen

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
