2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen
Specifications
Brand Name :
ANWELL
Model Number :
AN-PX-P2.0 P1.2 P1.5 P1.6 P1.8
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P, D/A, Western Union
Delivery Time :
7 business days
Packaging Details :
Plywood Case Carton
Model NO. :
P2.0 P1.2 P1.5 P1.6 P1.8
Display Type :
LED Video Display
Refres Rate :
3840Hz
Size :
480X480mm/400*300.0mm
Brightness :
>1100nis
Scanning Mode :
1/26 Scan
Application :
Shopping mall, Trade fair, Indoor advertising
Control :
Novastar Linsn Colorlight
LED Lamp :
Nationstar SMD1010
Trademark :
ANWELL
Maintainence :

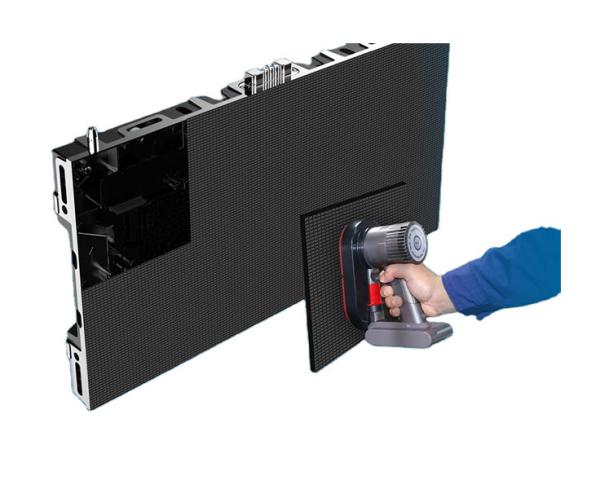

Rear Service / front service
Use Voltage :
AC110-240V
Transport Package :
Wooden Case / flight case
Lead time of deliery :
10 working days
Description

Ultra High Definition P2.0 P1.2 P1.5 P1.6 P1.8 Indoor LED Display Screen

Best-in-Class Intelligent Conference LED Screen P1.5 P1.6 P1.8 P1.9 P2.0
• Super-sized, ultra-thin, seamless LED screen

• High screen brightness with brilliant image

• Maintain gray levels and details in dark scene

• Wider achievable color gamut, pure and vibrant color picture

• 95% screen-to-body ratio • 100 to 800 nit adjustable brightness

• Point-to-point full screen calibration for best uniformity

• HD/UHD resolution options

• 24/7 continues operation

• Patent pending special design to lower screen temperature

• Long product life, high power efficiency

• TV studio, shopping mall, video meeting, theme resort, car show, fashion store, security system, window display, reception hall, opera house, wedding hall, events and trade fair.

Supply Ability

Supply Ability: 400 Square Meter/Square Meters per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Technical Specification:

Model No. AN-PX-1.875 AN-PX-1.9 AN-PX-2.0
Pixel Pitch 1.875mm 1.9mm 2.0mm
LED Type SMD1010 black LEDs SMD1010 black LEDs SMD2121 black LEDs
LED Brand Kinglight / Kinglight / Kinglight /
Nation Star Nation Star Nation Star
LED Color 1R 1G 1B 1R 1G 1B 1R 1G 1B
Pixel Density 284,444 pixels/sqm 275,625 pixels/sqm 250,000 pixels/sqm
Features
Die Casting Cabinet light weight, high precision, esay installing
High Resolution for the same size LED screen, the mini-LED screen is much higher resolution. It can play large images more details and better.
Low Brightness through scientific correction, the mini-LED screen plays more accurate colors at a comfortable brightness. The image is more vivid and attactive.
High Grey Scale
Silent Design the mimi-LED screen is designed without fans. It works in silent.
Calm & Amazing
Excellent Cooling the cabinet is aluminum alloy, with excellent heat diffusion and endurance. There are also several vents at the back of the screen to ensure the cooling
Module Info.
Module Size 240 x 240mm 160 x 160mm 256 x 128mm
Module Resolution 128 x 128 pixels 84 x 84 pixels 128 x 64 pixels
Scan Mode 1/32 Scan 1/28 Scan 1/16 Scan
Driving Mode Constant Current Driving
Cabinet Info.
Cabinet Size 480 x 480mm 480 x 480mm 512 x 512mm

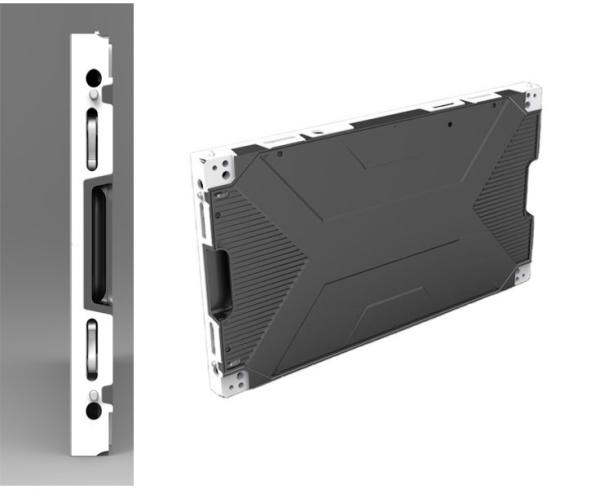

Cabinet Type & Material Die-casting aluminum cabinet
Cabinet Resolution 256 x 256 pixels 252 x 252 pixels 256 x 256pixels
Weight 6 KGS/cabinet 6 KGS/cabinet 6 KGS/cabinet
Protection Grade Front & Back IP44 Front & Back IP44 Front & Back IP44
Using Site installed in monitoring room, cinema, meeting room, TV station, hotel, command center, traffic center, theatre, club, etc.
Tech. Parameters
Brightness 1200 cd/sqm (nit) 1200 cd/sqm (nit) 1200 cd/sqm (nit)
Grey Scale 65536 level 65536 level 65536 level
Displaying Color 281 trillion colors 281 trillion colors 281 trillion colors
Frame Rate 60 HZ 60 HZ 60 HZ
Refresh Rate 3840 HZ 3840 HZ 3840 HZ
Contrast Ratio 1000 : 1 1000 : 1 1000 : 1
Viewing Angle Horizon: 140º Horizon: 140º Horizon: 140º
Vertical: 140º Vertical: 140º Vertical: 140º
Viewing Distance 1mts to 300mts 1mts to 300mts 1mts to 300mts
Power Input AC110V 60HZ AC110V 60HZ AC110V 60HZ
AC220V 50HZ AC220V 50HZ AC220V 50HZ
Power Consum. Max. 700 W/sqm Max. 700 W/sqm Max. 700 W/sqm
Aver. 200 W/sqm Aver. 200 W/sqm Aver. 200 W/sqm
Working Temp. -30 to 60 Celsius -30 to 60 Celsius -30 to 60 Celsius
Working Humidity 10% to 90% 10% to 90% 10% to 90%
Storage Temp. -40 to 70 Celsius -40 to 70 Celsius -40 to 70 Celsius
Storage Humidity 10% to 90% 10% to 90% 10% to 90%
Screen Controlling Linsn / Nova / Color Light Linsn / Nova / Color Light Linsn / Nova / Color Light
Signal Input AV, S-Video, YC, YUV, VGA, DVI, HDMI, SDI, DP (use Video Processor)
MTBF > 5000 Hours > 5000 Hours > 5000 Hours
LED Life Span 100,000 Hours 100,000 Hours 100,000 Hours
Warranty 2 years 2 years 2 years
Certifications CE, RoHS, FCC, CE, RoHS, FCC, CE, RoHS, FCC,
C-TICK, CCC, C-TICK, CCC, C-TICK, CCC,


LED display proejcts

2K 4K 16: 9 UHD LED Video Wall Indoor Commercial Advertising LED Screen

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
