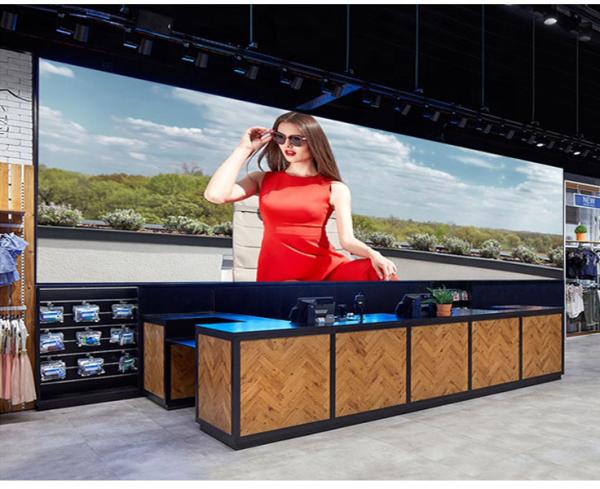

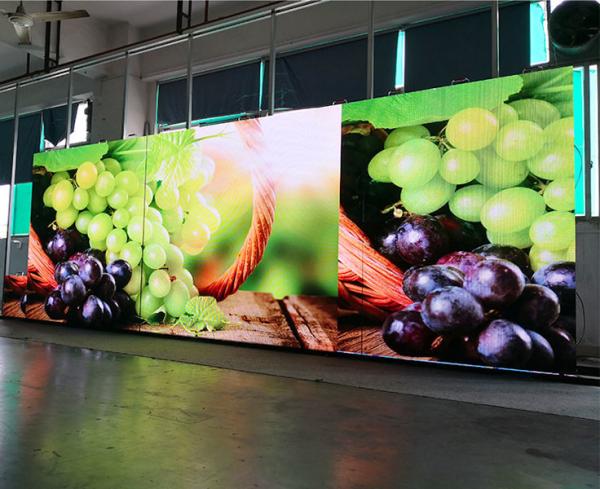

Factory Supply SMD Indoor Screen HD Led Display Indoor LED Video Wall P4 P3 P2.5
Featrue:
○ High definition videoes and pictures ,you will like it ;
○ Cabinets can be customized to different dimension ;
○ Both for front service and rear service with magnets;
○ Using a silent fan, no noise;
○ Refresh is very high can upto 3840 HZ ;
○ Widly viewing angle,H:140°,V:140° ;
○ Easy to install: Stacking installation design enables easier installation .
Application
1.stage performance, bar entertainment, ceremonial wedding, conference, exhibition, musical theater and other event rental application
2.TV studio;Monitor room;Control room;Dispatch center;Conference room;Show room etc
Technical Specification:
Item | Tehnical parameter | |
Panel | Dimension | (w)256mm*128mmH) |
Pixel pitch | 4mm | |
Pixel Density | 62500 DOTS/M2 | |
Pixel configuration | 1R1G1B | |
LED specification | SMD 2121 | |
Pixel resolution | 64*32 dots | |
Average power | 13W | |
Panel weight | 0.25KG | |
Cabinet&Bracket | Bracket size | 256mm*256mm*15mm |
Quantity of panel | 2*2=4PCS | |
Weight for bracket | 1.5KG | |
Best viewing distance | 140/120 | |
Best viewing angle | 5-15 Meter | |
Panel power supply | 5V40A | |
Screen power supply | AC220V-AC250V | |
Max power | 1200W/sqn | |
Average power | 550W/sqn | |
Tehnical parametr | Driving device | 5024/16126 Constant current drive |
Drive type | 1/16 Scanning | |
Refresh frequency | >300HZ | |
Display color | 4096*4096*4096 | |
Brightness | 1800 mcd/M2 | |
Life span | 100000 Hours | |
Communicaion distance | <100 Meter |
Supply Ability
Supply Ability: 1100+pieces/pcs per Month.
Packaging & Delivery
Indoor LED screen display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
