Specifications
Brand Name :
ANWELL
Model Number :
AN-PX-3.0
Certification :
CE, RoHS, CCC
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, D/P
Supply Ability :
1100 SQM per month
Delivery Time :
7 business days
Packaging Details :
Flight case and wooden case package
Application: :
Event, stage rental
Color: :
Full Color
Pixel Pitch: :
3.0mm
Panel Size: :
192*192MM
Model Number: :
AN-PX-3.0
Pixel resolution: :
64dots(W)*64dots (H)
Module Weight: :
180g
Product name: :
Indoor Rental Display P3 SMD Stage LED Screen
Brightness: :
1100cd/m2
IP grade: :
IP55
Life span: :
80,000 hours
Pixel density: :
111111 dots/sqm
Refresh Rate: :
3840 Hz
Warranty: :
2 full Years
Description

RGB Indoor HD P3 Led Panel Led Screen P3 Led TV Studio Video Wall

Product Features

1. Famous power supply selection: Meanwell, E-energy, Greatwall etc., CE certified.

2. Famous control system for optional: Synchronous: Nova, LINSN, Mooncell etc.; Aynchronous: Tianyi, Xixun or Betters etc..

They are stable, wide application, easy to operate, good refresh rate and grey scale, powerful functions to support your need.

3. Skillful and strict assembly workmanship, can assure you high quality guaranteed products.

4. All our products support 2 years warranty or more according to your requirements.

5. Immediate, patient and considerate service is our principle.

Supply Ability

Supply Ability:1400 Square Meter/Square Meters per Month.

Packaging & Delivery

Packaging Details
LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
Port
SHENZHEN CHINA
LOGO
Acceptable
Lead Time :
Quantity(Square Meters) 1 - 100 >100
Est. Time(days) 25 To be negotiated

Technical Specification:

Pixel pitch 3MM
Panel size L192*H192*T14MM
Physical density 111111dot/M2
Pixel configuration 1,1,1 R/G/B
Driving method 1/32 scan
LED Encapsulation SMD 2121
Display resolution 64X64=4096 DOTS
Module weight 0.213KG
Module port HUB75
Module working voltage 5VDC
Module consumption ≤16W
Every square metre module 27PCS
Maximum power <450W/ M2
Equilibrium brightness ≥950
Working environment temperature -10~600C
Working environment humidity 10%~70% RH
Display working voltage AC46~54HZ,220V±15%/110V±15%
Best viewing distance ≥3M
Lamp failure frequency <0.0001
IP rating The back IP40,The front IP50

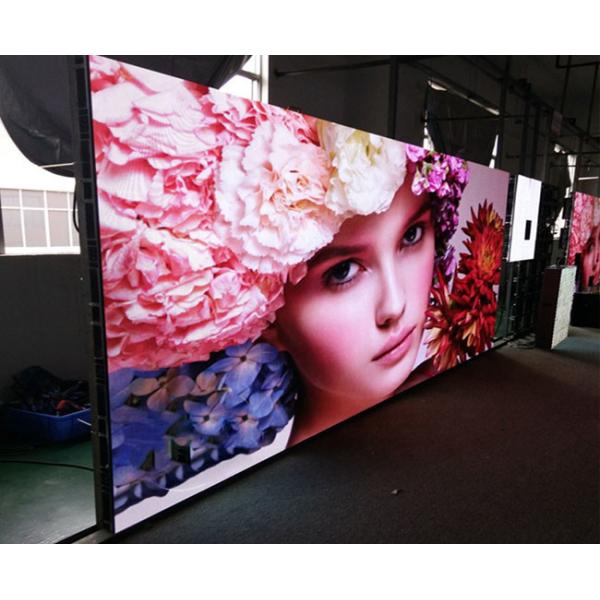

Indoor LED display proejcts

Customized Indoor Rental LED Display Module P3 for Commercial Display

Warranty Terms

ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.

1. All the products purchased from ANWELL company carries one year free replacements and product life supports.

A: Two years warranty period, including one year free replacement warranty period..

B: Product life supports and free project design.

2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.

3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.

4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.

5. Special offers available for preferred clients.
