Super Slim HD 500x1000 Transparent Indoor Led Display Video wall Screen
1.Good visualization
Glassbased design allows the light to pass through the glass without any influence to the building structure around.Transparency of the glass screen can up to 75%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 14kg/m2
3.High brightness, and high definition.
The brightness can up to 5000 cd/m2.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
Technical Specification:
Item | AN-PX-3.91-7.81 | AN-PX-7.81-7.81 | AN-PX-10.42-10.42 | |
Pixel pitch | 3.91-7.81mm | 7.81-7.81mm | 10.42 mm | |
Module size(W*H) | 500*125mm | |||
Cabinet size(W*H) | 500*1000mm / 1000*1000mm /2000*1000mm | |||
Cabinet resolution(W*H) | 128*128 Dots | 128*64 Dots | 96*48 Dots | |
Cabinet material | Extruded aluminum | Extruded aluminum | Extruded aluminum | |
Cabinet weight | 5Kg | 5Kg | 5 Kg | |
Grey scale | 14Bit | 14Bit | 14Bit | |
Refresh rate | 1920 Hz | 1920 Hz | 1920 Hz | |
White balance brightness | 5500 Nit | 6000 Nit | 6000 Nit | |
Horizontal viewing angle | 140 degree | 140 degree | 140 degree | |
Vertical viewing angle | 140 degree | 140 degree | 140 degree | |
Power consumption(Max) | 1200 W/M2 | 1200 W/M2 | 1000 W/M2 | |
Protection level | IP4X | IP4X | IP4X | |
Application scene | Indoor installed,outdoor watching | |||
Work environment | -10…55ºC RH 10%…90% | |||
Pixel configuration | SMD3528UV | SMD3528UV | SMD3528UV | |
Minimum viewing distance | 5.0 M | 7.0 M | 9.0 M | |
Best viewing distance | 5.0-45 M | 7.0-55 M | 9.0-75 M | |
Pixel density | 30000 Dots/sqm | 16667 Dots/sqm | 10000 Dots/sqm | |
Max brightness | 5500 Nit | 5500 Nit | 5500 Nit | |
Voltage | AC95-240V | AC95-240V | AC95-240V | |
Transparent rate | 72% | 75% | 80% | |
Drive mode | 1/4S constant current | 1/2S constant current | 1/2S constant current | |
Circuit scheme | high refresh rate, no ghost. | high refresh rate, no ghost. | high refresh rate, no ghost. | |
MTBF | ≥10,000h | ≥10,000h | ≥10,000h | |
Lifespan | ≥80,000h | ≥80,000h | ≥80,000h | |
Pixel failure ratio | <3/100000 | <3/100000 | <3/100000 |

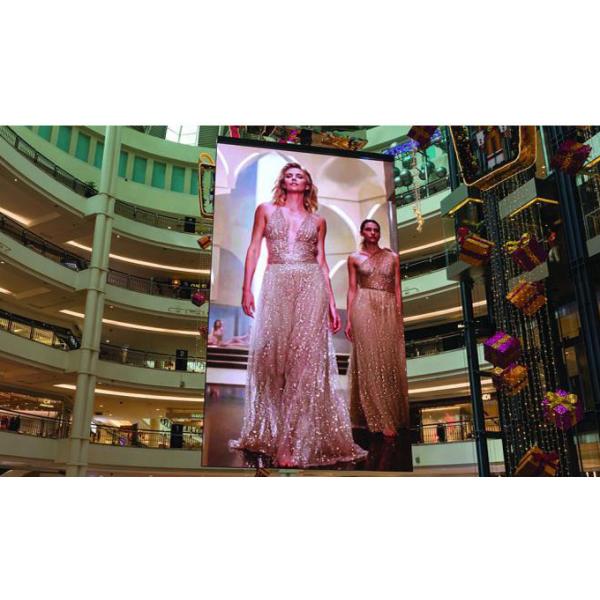

LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
